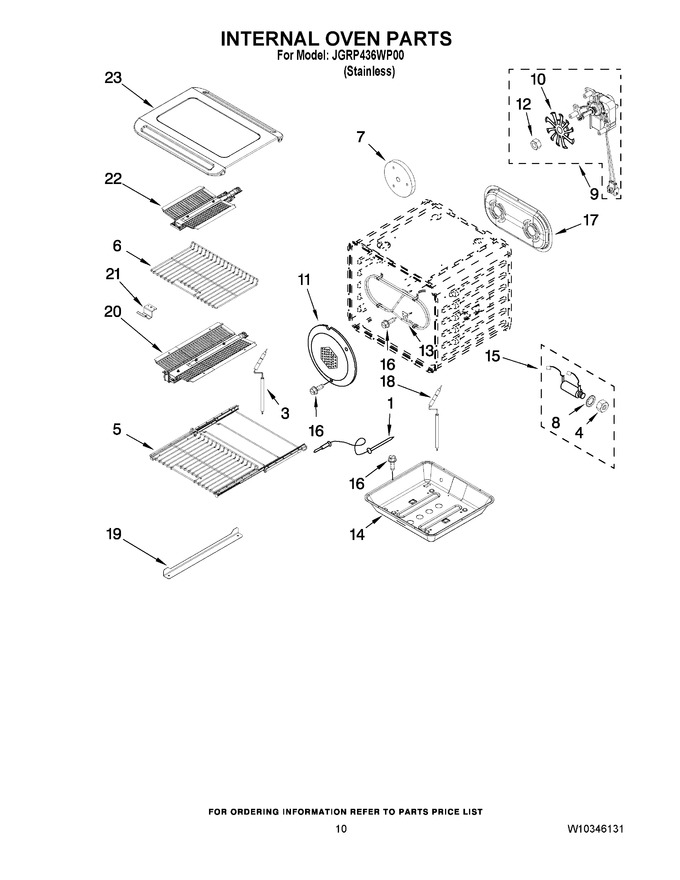

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9755542 | Probe-meat (Replaces: 9755542) |
|
Immediately | $ 89.76 | ||||
| 1 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 7.34 | |||||
| 3 | W11446096 | Broil, Electrode (Replaces: W10332287) |
|
Immediately | $ 75.62 | ||||
| 4 | WP9755546 | Locknut (Replaces: 9755546) |
|
$ 6.57 | |||||
| 5 | W10212435 | Rack, Sliding |
|
- | |||||
| 6 | W10822069 | Rack-oven (Replaces: W10277392) |
|
Immediately | $ 124.73 | ||||
| 7 | W11688507 | Insulation, Convection Cover (Replaces: W10282821) |
|
Immediately | $ 24.39 | ||||
| 8 | WP9755547 | Washer (Replaces: 9755547) |
|
$ 5.77 | |||||
| 9 | W10794440 | Motor, Convection (Replaces: W10314406) |
|
Immediately | $ 299.07 | ||||
| 10 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.12 | ||||
| 11 | W10261523 | Cover, Fan |
|
$ 70.07 | |||||
| 12 | WPW10116349 | Nut (Replaces: W10116349) |
|
$ 19.60 | |||||
| 13 | W11033310 | Element, Convection (Replaces: W10145949) |
|
$ 146.06 | |||||
| 14 | WPW10145744 | Support, Bake Pan (Replaces: W10145744) |
|
$ 192.74 | |||||
| 15 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
$ 143.37 | |||||
| 16 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 7.34 | |||||
| 17 | W10246060 | Baffle, Convection |
|
$ 167.44 | |||||
| 18 | W11448312 | Electrode, Bake (Replaces: W10332290) |
|
Immediately | $ 65.61 | ||||
| 19 | W10317437 | Bracket, Broil Standoff |
|
- | |||||
| 20 | W11661180 | Burner, Broil (Replaces: W10311335) |
|
$ 158.34 | |||||
| 21 | W10308040 | Bracket, Bake Burner |
|
- | |||||
| 22 | W11643161 | Burner, Bake (Replaces: W10311409) |
|
Immediately | $ 166.63 | ||||
| 23 | WPW10272546 | Bottom, Oven Gas (Replaces: W10272546) |
|
Immediately | $ 200.51 |
