SELECT A DIAGRAM
New Model Search:

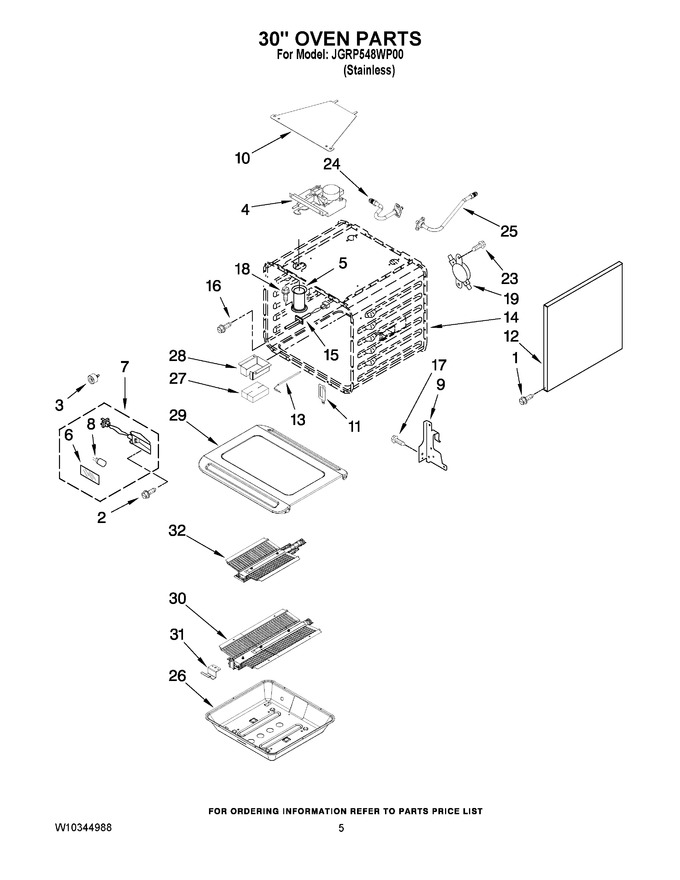

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 6.80 | ||||
| 2 | 4449748 | Screw |
|
$ 12.81 | |||||
| 3 | W10105790 | Assembly, Bumper |
|
$ 6.67 | |||||
| 4 | W11029221 | Latch, Motorized (Replaces: W10195935) |
|
Immediately | $ 294.89 | ||||
| 5 | W10145743 | Tube, Vent |
|
- | |||||
| 6 | W10169756 | Lens, Light |
|
$ 37.97 | |||||
| 7 | WPW10307114 | Oven Light Assy (Replaces: W10307114) |
|
Immediately | $ 104.41 | ||||
| 8 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 46.52 | ||||
| 9 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 118.57 | ||||
| 9 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 114.93 | ||||
| 10 | W10160858 | Cover, Latch |
|
$ 69.25 | |||||
| 11 | W10115877 | Cover, Hinge (right) |
|
- | |||||
| 11 | W10115876 | Cover, Hinge (left) |
|
- | |||||
| 12 | W10269206 | Side, Chassis (left) |
|
$ 211.75 | |||||
| 12 | W10269205 | Side, Chassis (right) |
|
$ 211.98 | |||||
| 13 | W11448312 | Electrode, Bake (Replaces: W10332290) |
|
Immediately | $ 65.61 | ||||
| 14 | N/P | Liner, Oven (not Serviced) |
|
- | |||||
| 15 | WPW10131825 | Sensor (Replaces: W10131825) |
|
Immediately | $ 94.50 | ||||
| 16 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 7.34 | |||||
| 17 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 18 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 13.25 | ||||
| 19 | WP4450249 | Thermostat (tod) (Replaces: 4450249) |
|
Immediately | $ 190.35 | ||||
| 23 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 24 | W10145715 | Tube, Bake |
|
$ 170.27 | |||||
| 25 | W10145716 | Tube, Broil |
|
$ 172.78 | |||||
| 26 | WPW10145744 | Support, Bake Pan (Replaces: W10145744) |
|
$ 192.74 | |||||
| 27 | W11688851 | Insulation, Broil Cover (Replaces: W10311009) |
|
- | |||||
| 28 | W10310985 | Broil Cover |
|
- | |||||
| 29 | WPW10272546 | Bottom, Gas Oven (Replaces: W10272546) |
|
Immediately | $ 200.51 | ||||
| 30 | W11661180 | Broil Burner (Replaces: W10311335) |
|
$ 158.34 | |||||
| 31 | W10308040 | Bracket, Bake Burner |
|
- | |||||
| 32 | W11643161 | Bake Burner (Replaces: W10311409) |
|
Immediately | $ 166.63 | ||||
| NI | W11661177 | Insulation, Wrap, 30`` (Replaces: W10282810) |
|
$ 146.25 | |||||
| NI | W11688580 | Insulation, Back, 30`` (Replaces: W10299350) |
|
- | |||||
| NI | W11684890 | Insulation, Bottom (Replaces: W10299354) |
|
- |
