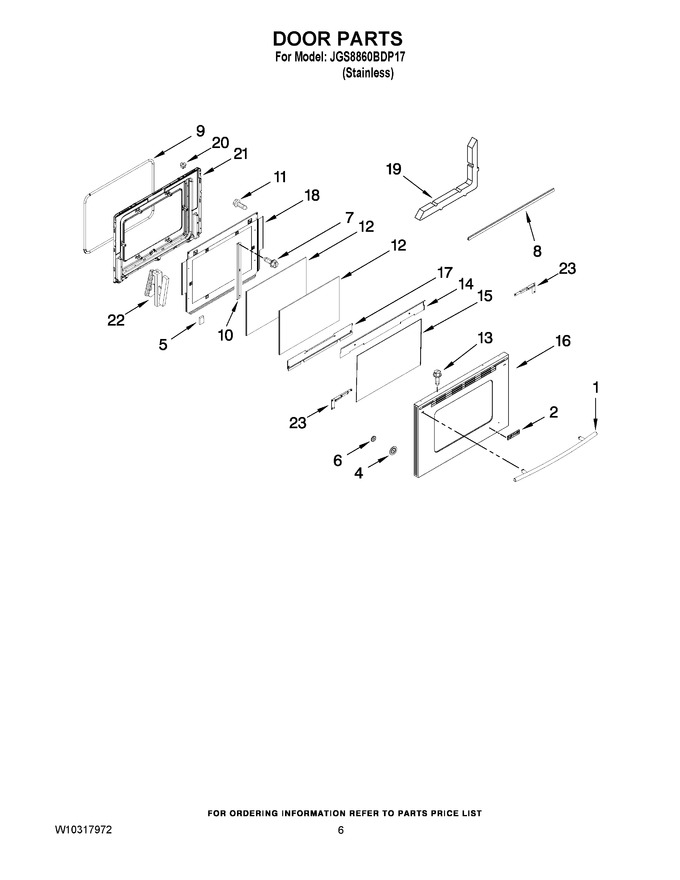

04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7701P475-60 | Handle, Door (Replaces: 7701P475-60) |
|
$ 264.54 | |||||
| 2 | 7719P087-60 | Nameplate |
|
- | |||||
| 4 | W10167659 | Backplate |
|
$ 22.07 | |||||
| 5 | WP74005546 | Spacer, Rubber (Replaces: 8010P130-60) |
|
$ 9.95 | |||||
| 6 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 4.56 | |||||
| 7 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 8 | 7201P143-60 | Gasket, Door Top |
|
$ 16.81 | |||||
| 9 | WPW10162384 | Gasket, Door (Replaces: W10162384) |
|
Immediately | $ 92.59 | ||||
| 10 | 3801F886-51 | Bracket, Glass |
|
$ 38.25 | |||||
| 11 | W11347848 | Screw (Replaces: 7101P376-60) |
|
$ 12.81 | |||||
| 12 | 74003645 | Glass, Inner (2) (Replaces: 7902P436-60) |
|
Immediately | $ 201.23 | ||||
| 13 | WP98008545 | Screw (Replaces: 7101P633-60) |
|
$ 16.74 | |||||
| 14 | 3604F418-51 | Shield, Door |
|
$ 77.46 | |||||
| 15 | 7902P768-60 | Glass, Door (inner Coated) |
|
- | |||||
| 16 | 7760P158-60 | Panel, Door |
|
$ 171.57 | |||||
| 17 | 3804F317-80 | Retainer, Glass |
|
$ 65.61 | |||||
| 18 | 3601F373-51 | Baffle, Door |
|
$ 256.44 | |||||
| 19 | 7002P246-60 | Insulation, Door |
|
$ 58.49 | |||||
| 20 | WP74001574 | Nut, Snap (Replaces: 7103P141-60) |
|
Immediately | $ 10.57 | ||||
| 21 | 2402W312-19 | Lining, Door |
|
$ 144.50 | |||||
| 22 | 74011475 | Hinge, Door (Replaces: 7106P143-60) |
|
Immediately | $ 120.25 | ||||
| 23 | 3804F307-51 | Retainer, Glass (right Side) |
|
$ 109.75 | |||||
| 23 | 3804F308-51 | Retainer, Glass (left Side) |
|
- |
