SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Ice Maker, Optional

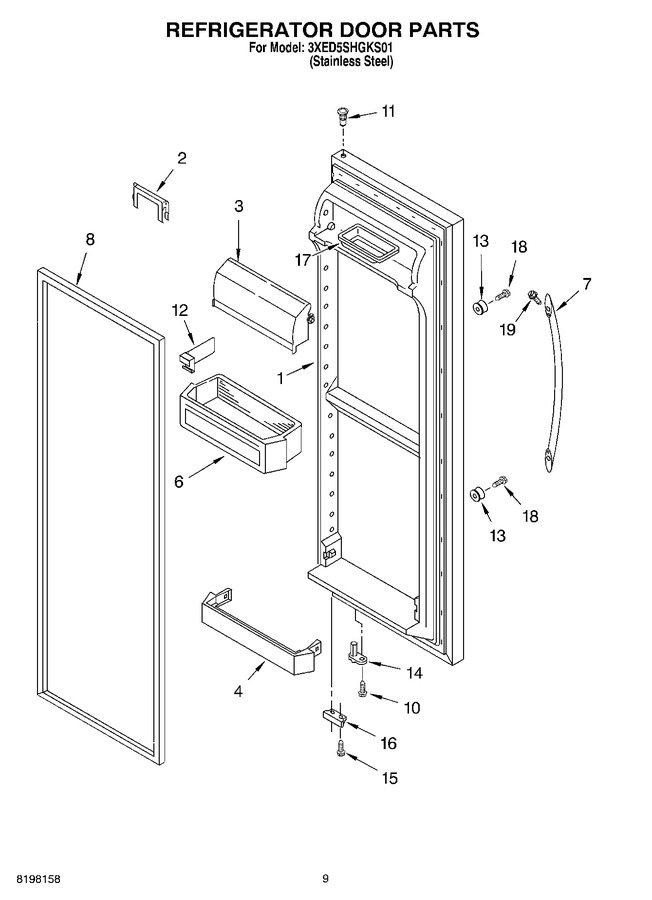

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2214652S		Refrigerator Door (includes Item No.8)		Appelez-nous	-
2	2173643		Retainer, Bottle		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 80.48
4	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 70.75
6	WPW10321304		Shelf Bin (3)   (Replaces: 2179607)			Immediately	$ 40.46
7	2204454S		Handle (includes Item 19)		Appelez-nous	-
8	2159083		Door Gasket Magnetic   (Replaces: 2221313)				$ 299.48
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
11	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 7.34
12	2195496		Divider, Bin		Appelez-nous	-
13	2203690		Stud, Handle		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.48
15	WP489483		Screw   (Replaces: 489420)				$ 10.27
16	WP2206629B		Bracket, Door Stop   (Replaces: 2206629B)				$ 38.51
17	2165792		Butter, Dish		Appelez-nous	-
18	WP489463		Screw   (Replaces: 489463)				$ 7.43
19	98654		Set Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
