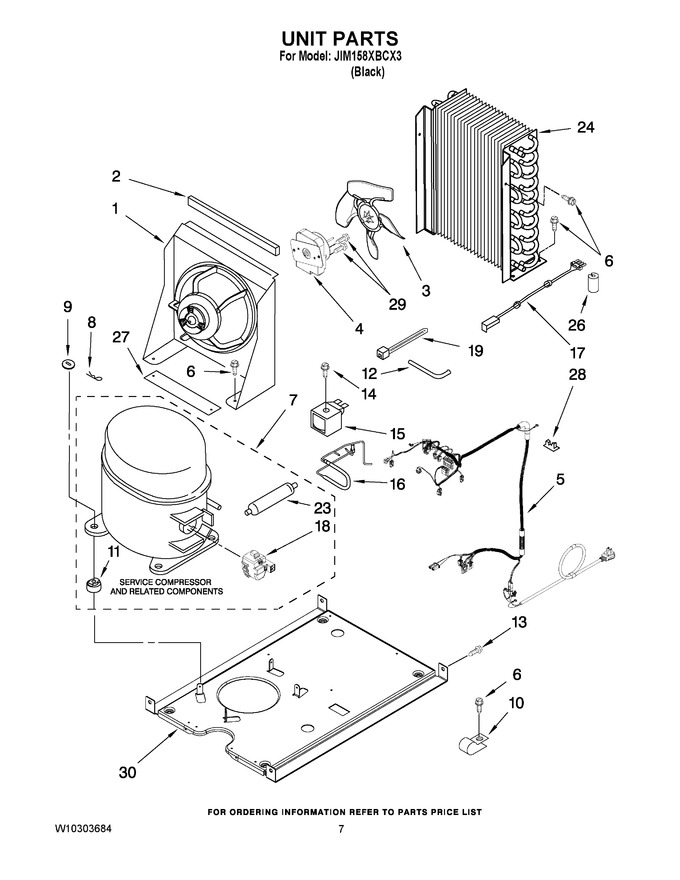

05 - Unit Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2185532		Bracket, Fan Mtg.   (Replaces: 2185532)				$ 91.96
2	2185675		Pad, Foam		Appelez-nous	-
3	W10200034		Blade, Fan		Appelez-nous	-
4	W10200032		Motor Fan				$ 332.03
5	W10193296		Wiring Harness, Complete Unit (includes Power Cord		Appelez-nous	-
6	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.56
7	WPW10605286		Compressor (includes Illus. 11 & 23)   (Replaces: W10136195)				$ 696.08
8	8559320		Clip, Mounting   (Replaces: 3405028)				$ 43.33
9	A201441		Shim (4)				$ 8.33
10	2185960		Clamp-service Cord		Appelez-nous	-
11	2185965		Grommet (4) (production)   (Replaces: 2217318)		Appelez-nous	-
11	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.57
12	W10528572		Tube, Process   (Replaces: 2208415)				$ 34.91
13	WP489464		Screw   (Replaces: 8281265)			Immediately	$ 7.54
14	489472		Screw		Appelez-nous	-
15	WPW10206473		Coil, Solenoid   (Replaces: W10206473)				$ 175.00
16	W11748341		Hot Gas Valve   (Replaces: 2313806)			Immediately	$ 91.69
17	WP2187629		Wiring Harness, Condenser Fan   (Replaces: 2187629)				$ 119.32
18	W10136197		Start Relay & Overload Combo Device				$ 76.43
19	WPW10339879		Strap   (Replaces: 2155774)				$ 7.47
23	W10843121		Drier (production)   (Replaces: 2319826)			Immediately	$ 51.42
23	W10843121		Drier (service)   (Replaces: W10183199)			Immediately	$ 51.42
24	WP2313624		Condenser   (Replaces: 2313624)				$ 329.73
26	W10852725		Grommet, Cond (1)   (Replaces: 2319835)				$ 7.28
27	2217397		Pad, Foam (2)		Appelez-nous	-
28	1115375		Clip-wiring				$ 11.15
29	WP489483		Screw   (Replaces: 489420)				$ 10.27
30	2217445		Base, Unit		Appelez-nous	-
NI	N/P		Refrigerant Charge (6.5 Oz. (r134a))		Appelez-nous	-
