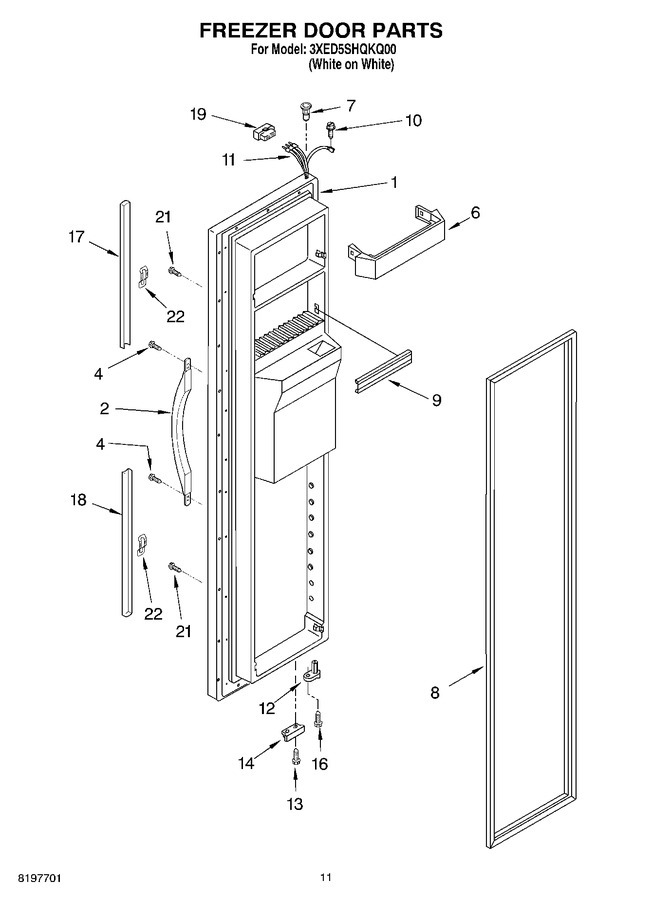

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2214638W		Freezer Door (includes Item No.8 And Dispenser Front Parts)		Appelez-nous	-
2	2186649W		Handle				$ 70.49
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
6	2204072		Trivet, Shelf (4)		Appelez-nous	-
7	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
8	2159074		Door Gasket, Magnetic (service)				$ 325.70
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 24.27
10	WP3400906		Screw   (Replaces: 489000)				$ 9.05
11	2311641		Wiring Harness   (Replaces: 2206601)		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 7.20
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
16	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
17	2194973W		Trim, Handle-top				$ 5.65
18	2194969W		Trim, Handle Bottom				$ 5.51
19	WP2154473		Connector   (Replaces: 2162412)				$ 24.83
21	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
22	WP2195327		Clip   (Replaces: 2195327)				$ 7.77
