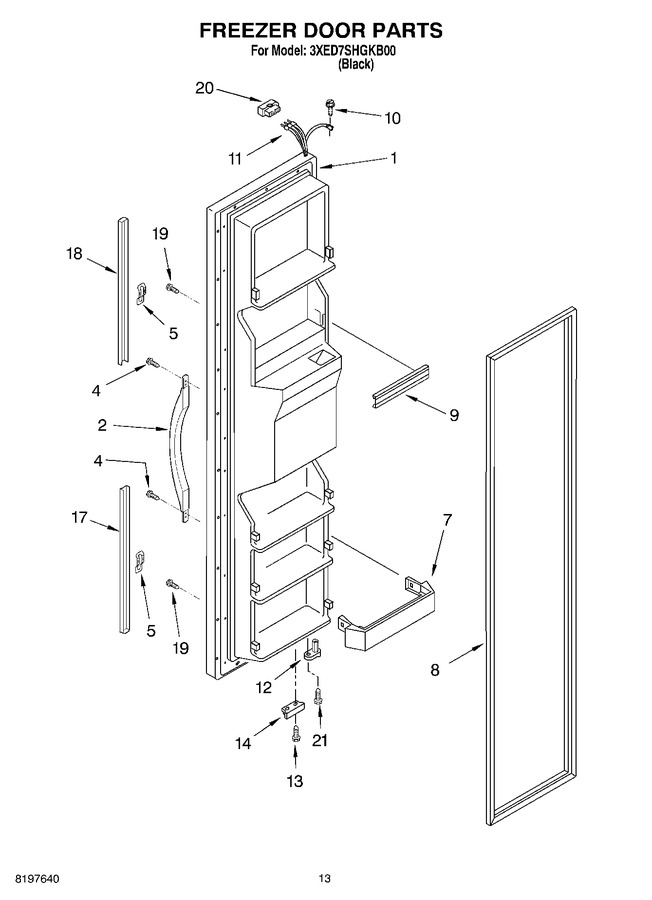

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2214695B		Freezer Door (includes Item No.8 And Dispenser Front Parts)		Appelez-nous	-
2	2186649B		Handle				$ 72.96
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
5	WP2195327		Clip   (Replaces: 2195327)				$ 7.77
7	2204072		Shelf Bin (4)		Appelez-nous	-
8	2159082		Door Gasket, Magnetic (service)				$ 332.49
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 24.27
10	WP489128		Screw   (Replaces: 488500)				$ 11.40
11	2311641		Dispenser Harness   (Replaces: 2206601)		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 7.20
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	WP2206629B		Bracket, Door Stop   (Replaces: 2206629B)				$ 42.79
17	WP2194969B		Trim, Handle Bottom   (Replaces: 2194969B)				$ 122.22
18	2194973B		Trim, Handle Top		Appelez-nous	-
19	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
20	2169477		Connector		Appelez-nous	-
21	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
