01 - Cooktop Parts

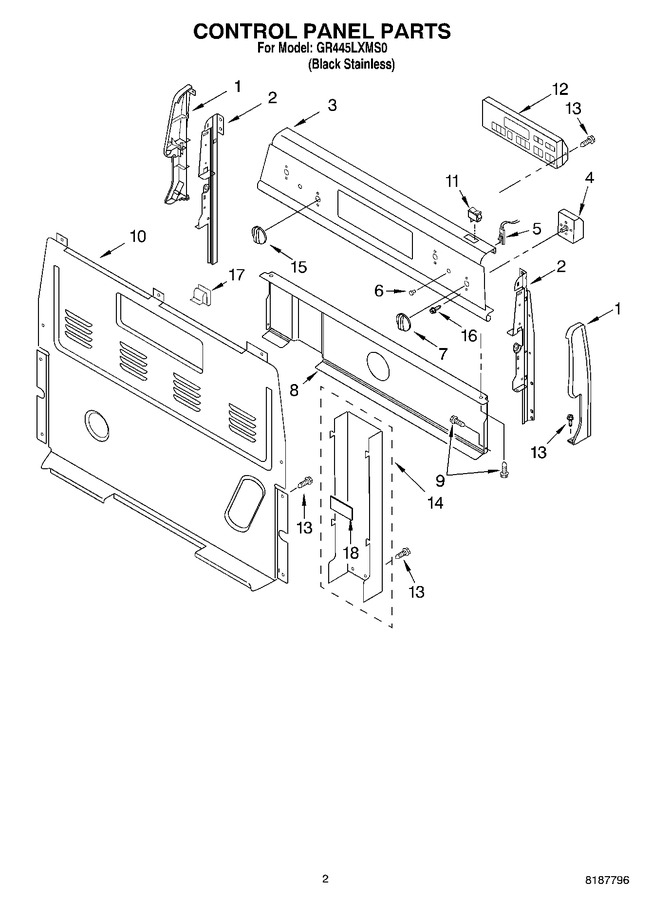

02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3186188 | Endcap (black Left Hand) |
|
- | |||||
| 1 | 3186189 | Endcap, Right Hand (black) |
|
- | |||||
| 2 | 8523408 | Support, Endcap (left Hand) |
|
- | |||||
| 2 | 8523409 | Support, Endcap (right Hand) |
|
- | |||||
| 3 | 8523467 | Panel, Backguard |
|
- | |||||
| 4 | 5500-287 | Switch, Infinite (right Front) (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 4 | WP9761048 | Switch, Infinite (left Front) (Replaces: 8522887) |
|
Immediately | $ 156.26 | ||||
| 4 | WP3148952 | Switch, Infinite (lr & Rf) (Replaces: 3148952) |
|
Immediately | $ 62.56 | ||||
| 4 | 8053510 | Switch, Infinite (center) |
|
- | |||||
| 5 | WP8523266 | Light, Indicator (250 V) (Replaces: 8523266) |
|
$ 105.75 | |||||
| 5 | WP8523265 | Light, Indicator (125 V (2)) (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 6 | WP3196068 | Lens, Light (3) (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | WP8522566 | Knob, Infinite (4) (Replaces: 8522566) |
|
$ 20.06 | |||||
| 8 | 8523280 | Shield, Heat |
|
- | |||||
| 9 | W10276642 | Screw (Replaces: 4449746) |
|
$ 5.77 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | 8524090 | Switch, Rocker |
|
- | |||||
| 12 | 8524255 | Control, Range |
|
$ 336.56 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | WPW10326122 | Cover, Box (Replaces: 9757965) |
|
$ 125.64 | |||||
| 15 | 8522570 | Knob, Keep Warm |
|
$ 6.44 | |||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 17 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 11.39 | |||||
| 18 | 9757309 | Insulator, Card |
|
- |
