SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Control


04 - Refrigerator Shelf


05 - Freezer Liner


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Icemaker


12 - Air Flow

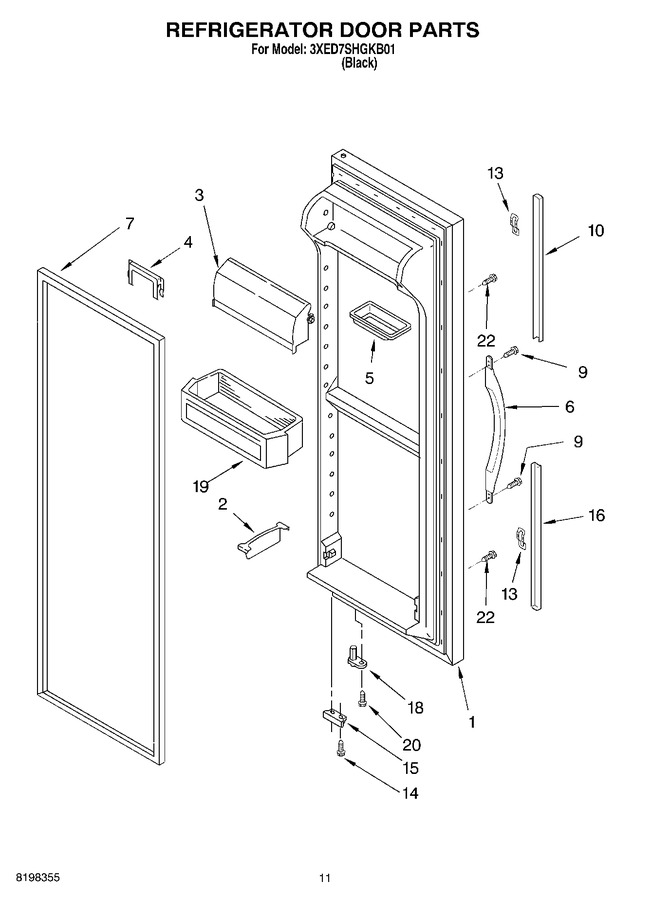

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206691B		Refrigerator Door (includes No.7)		Appelez-nous	-
2	2195496		Load, Lock (3)		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 89.42
4	2173643		Retainer, Bottle		Appelez-nous	-
5	2165792		Butter, Dish		Appelez-nous	-
6	2186649B		Handle				$ 72.96
7	2159083		Door Gasket, Magnetic (service)   (Replaces: 2221313)				$ 332.76
9	WP489491		Screw   (Replaces: 489491)				$ 7.30
10	2194973B		Trim, Handle Top		Appelez-nous	-
13	WP2195327		Clip   (Replaces: 2195327)				$ 7.77
14	WP489483		Screw   (Replaces: 489420)				$ 11.41
15	2206630		Bracket, Door Stop		Appelez-nous	-
16	WP2194969B		Trim, Handle Bottom   (Replaces: 2194969B)				$ 122.22
18	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 7.20
19	2179608		Shelf Bin (4)		Appelez-nous	-
20	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
22	WP3400852		Screw   (Replaces: 3400852)				$ 10.33

    View Diagram in Separate Window       Print Part List
