Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2214562SB Freezer Door Appelez-nous -
3 WP2217185B Handle, Center   (Replaces: 2217185B) Special Order $ 190.14

5 WP2195327 Clip   (Replaces: 2195327) Special Order $ 7.77

6 WP2182181 Thimble-top   (Replaces: 2200086) Special Order $ 8.15

9 WP489491 Screw   (Replaces: 489491) Special Order $ 7.30

10 2159080 Door, Gasket Magnetic Special Order $ 325.91

14 WP2156021 Trim, Door Shelf (4)   (Replaces: 2204070) Special Order $ 66.43

17 2187272 Harness, Door Appelez-nous -
18 WPW10307490 Trim, Door Shelf   (Replaces: 2209680) In-Stock Immediately $ 24.27

19 WP489128 Screw   (Replaces: 8281149) Special Order $ 11.40

21 WP3400012 Screw   (Replaces: 3400012) Special Order $ 8.26

24 2217191B Extension, Top Appelez-nous -
25 WP2182179 Door Closer, Upper Cam   (Replaces: 2182179) In-Stock Immediately $ 7.20

26 WP2154473 Housing Connector   (Replaces: 2162412) Special Order $ 24.83

27 WP489483 Screw   (Replaces: 489420) Special Order $ 11.41

28 2200082B Bracket, Door Stop Special Order $ 42.44

29 2217186B Extension, Bottom Appelez-nous -
30 WP3400852 Screw   (Replaces: 3400852) Special Order $ 10.33

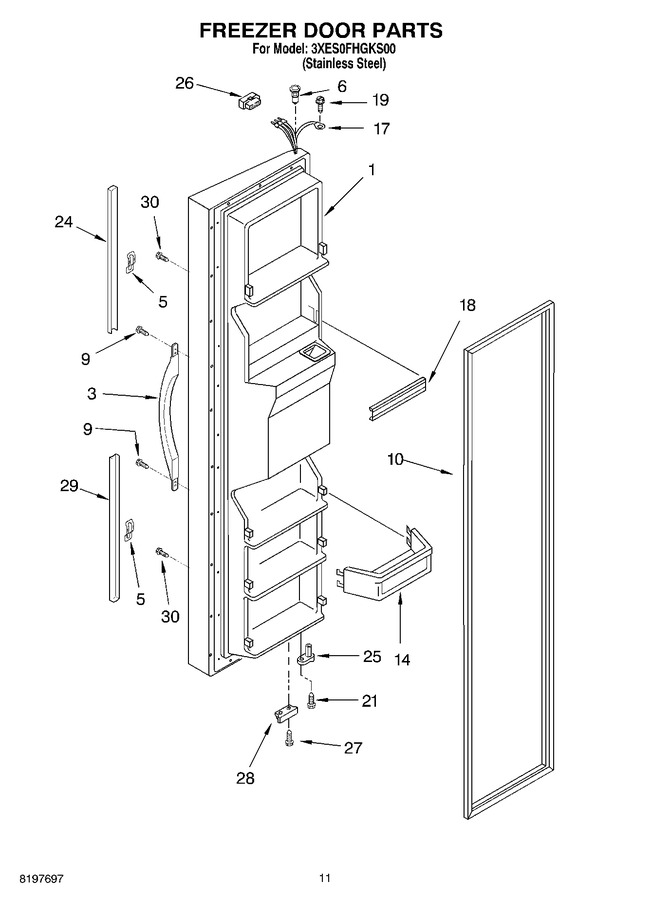

    View Diagram in Separate Window     Print Icon   Print Part List
