01 - Cooktop Parts
02 - Drawer & Broiler Parts

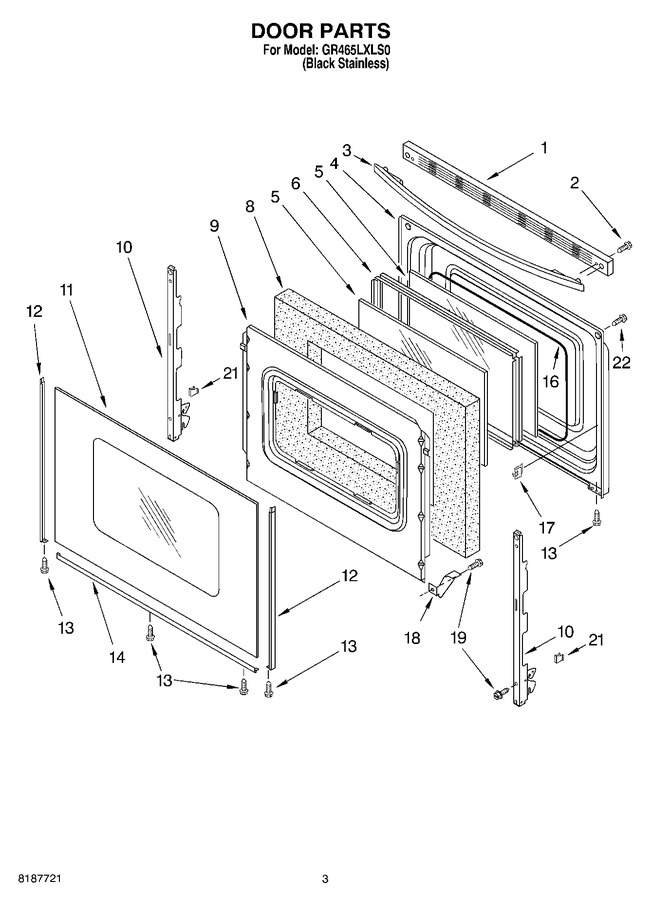

03 - Door Parts
04 - Chassis Parts
05 - Control Panel Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8272243 | Trim, Door Top |
|
- | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 9.93 | ||||
| 3 | WPW10202217 | Handle, Door (Replaces: 3195922) |
|
$ 243.59 | |||||
| 4 | 3186292 | Liner, Door |
|
- | |||||
| 5 | WP8053948 | Glass, Inner (2) (Replaces: 8053948) |
|
Immediately | $ 208.85 | ||||
| 6 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 81.08 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 91.23 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 3186297) |
|
$ 209.98 | |||||
| 10 | 8190075 | Hinge, Door |
|
- | |||||
| 11 | 8272215 | Glass, Outer Door (stainless) |
|
- | |||||
| 12 | W10761014 | Trim, Side (black Right Hand) (Replaces: 8523165) |
|
Immediately | $ 65.66 | ||||
| 12 | W10761018 | Trim, Side (black Left Hand) (Replaces: 8523171) |
|
Immediately | $ 49.32 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 14 | WP8523180 | Trim, Lower (Replaces: 8523180) |
|
$ 152.10 | |||||
| 16 | 8522414 | Seal, Window |
|
$ 160.59 | |||||
| 17 | 3196025 | Clip, Glass (6) |
|
$ 20.10 | |||||
| 18 | 3196794 | Bracket, Window |
|
$ 24.34 | |||||
| 19 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 21 | 3196925 | Clip, Door Stop |
|
$ 9.06 | |||||
| 22 | WP179051 | Screw (Replaces: 3196161) |
|
Immediately | $ 7.58 |
