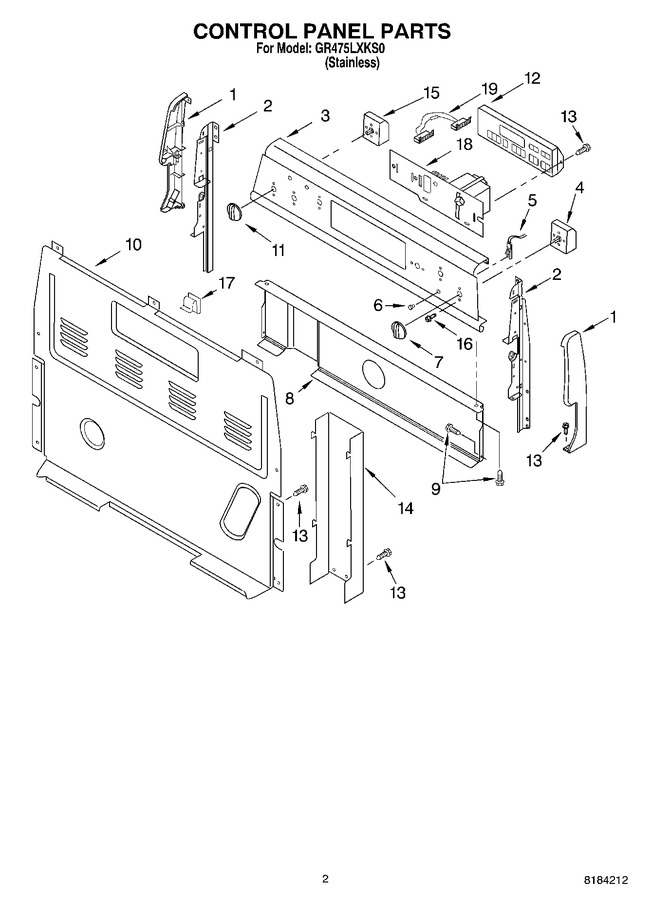

01 - Cooktop, Literature
02 - Control Panel
03 - Chassis
04 - Door
05 - Drawer And Broiler, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3186188 | Endcap (black Left Hand) |
|
- | |||||
| 1 | 3186189 | Endcap, Right Hand (black) |
|
- | |||||
| 2 | 3186198 | Support, Endcap (left Hand) |
|
- | |||||
| 2 | 3186199 | Support, Endcap (right Hand) |
|
- | |||||
| 3 | 8522886 | Panel, Backguard |
|
- | |||||
| 4 | 5500-287 | Switch, Infinite (right Front) (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 4 | WP9761048 | Switch, Infinite (left Front) (Replaces: 8522887) |
|
Immediately | $ 156.26 | ||||
| 4 | WP3148952 | Switch, Infinite (lr & Rf) (Replaces: 3148952) |
|
Immediately | $ 62.56 | ||||
| 4 | 8053510 | Switch, Infinite (center Rear) |
|
- | |||||
| 5 | 8522791 | Light, Indicator (element) |
|
- | |||||
| 5 | 8522953 | Light, Indicator (right Side) |
|
- | |||||
| 5 | 8522790 | Light, Indicator (accusimmer) |
|
- | |||||
| 6 | WP3196068 | Lens, Light (3) (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | WP8522566 | Knob, Infinite (4) (Replaces: 8522566) |
|
$ 20.06 | |||||
| 8 | 8053911 | Shield, Heat |
|
- | |||||
| 9 | W10276642 | Screw (Replaces: 4449746) |
|
$ 5.77 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | 8522570 | Knob, Infinite (2) Accusim/keep Warm |
|
$ 6.44 | |||||
| 12 | 8523334 | Control, Range |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | WPW10326122 | Cover, Box (Replaces: 3195133) |
|
$ 125.64 | |||||
| 15 | 8053511 | Switch, Rotary |
|
- | |||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 17 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 11.39 | |||||
| 18 | 9755076 | Power Supply, Pca |
|
- | |||||
| 19 | 8273906 | Jumper W/ Fuse |
|
- |
