SELECT A DIAGRAM
01 - Cabinet Parts
02 - Liner Parts

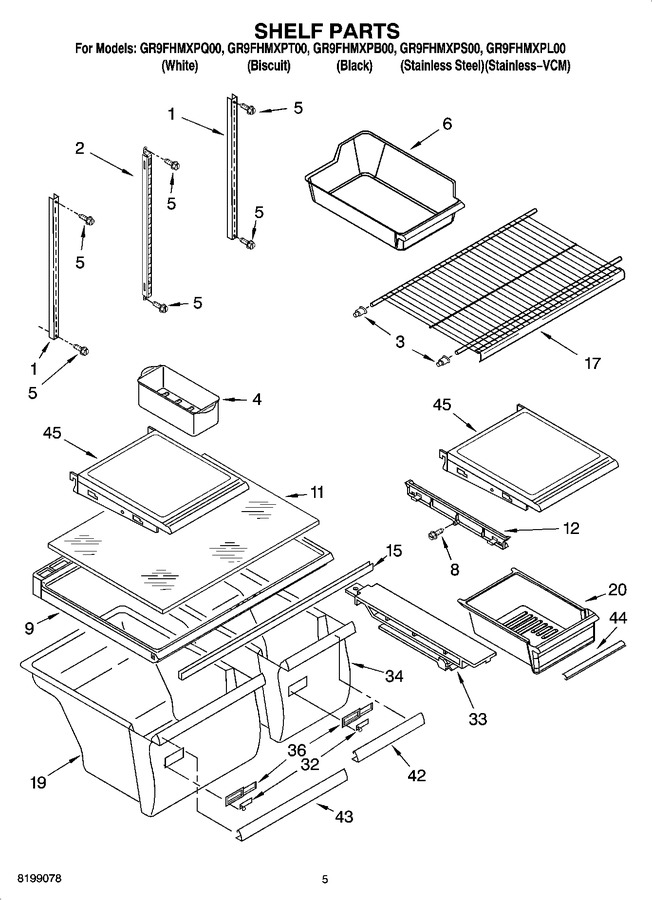

03 - Shelf Parts
04 - Refrigerator Door Parts
05 - Unit Parts
06 - Icemaker Parts
07 - Freezer Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 2 | 2300520 | Shelf, Ladder Center |
|
$ 75.36 | |||||
| 3 | WPW10130299 | Cup, Shelf Mounting (Replaces: 2163762) |
|
Immediately | $ 13.23 | ||||
| 4 | W10136387A | Egg Bin (Replaces: 2216624) |
|
$ 17.59 | |||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 6 | 2254352A | Ice Bucket (Replaces: 2254352) |
|
$ 52.78 | |||||
| 8 | WP3400065 | Screw (Replaces: 3400065) |
|
Immediately | $ 7.36 | ||||
| 9 | WP2314548 | Crisper Cover (Replaces: 2221752) |
|
$ 233.85 | |||||
| 11 | WP2169921 | Glass, Crisper Cover (Replaces: 2221693) |
|
$ 233.04 | |||||
| 12 | 2214892 | Slide Pan |
|
- | |||||
| 15 | WP2172748 | Crisper Support (Replaces: 2172541) |
|
$ 91.87 | |||||
| 17 | WP2176275 | Shelf, Freezer (Replaces: 2176275) |
|
$ 111.06 | |||||
| 19 | W10854037 | Pan, Crisper Wide (includes 32, 36 And 43) (Replaces: 2218139) |
|
Immediately | $ 161.27 | ||||
| 20 | WP2218127K | Pan, Meat (Replaces: 2218127) |
|
$ 132.12 | |||||
| 32 | WP2176222 | Slide, Humidity Control (Replaces: 2176222) |
|
$ 27.35 | |||||
| 33 | WP2163835 | Crisper Track, Center (Replaces: 2163835) |
|
Immediately | $ 32.83 | ||||
| 34 | W10856580 | Pan, Crisper (includes 32, 36 And 42) (Replaces: 2218138) |
|
Immediately | $ 159.33 | ||||
| 36 | W11819839 | Body, Humidity Control (Replaces: 2212446) |
|
$ 14.23 | |||||
| 42 | 2195340 | Trim, Crisper Pan |
|
$ 7.07 | |||||
| 43 | WP2195341 | Trim, Crisper Pan (Replaces: 2195341) |
|
$ 78.00 | |||||
| 44 | 2176356 | Trim, Meat Pan |
|
- | |||||
| 45 | 2214908 | Shelf Assembly, Spillguard (2) |
|
- |
