SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts

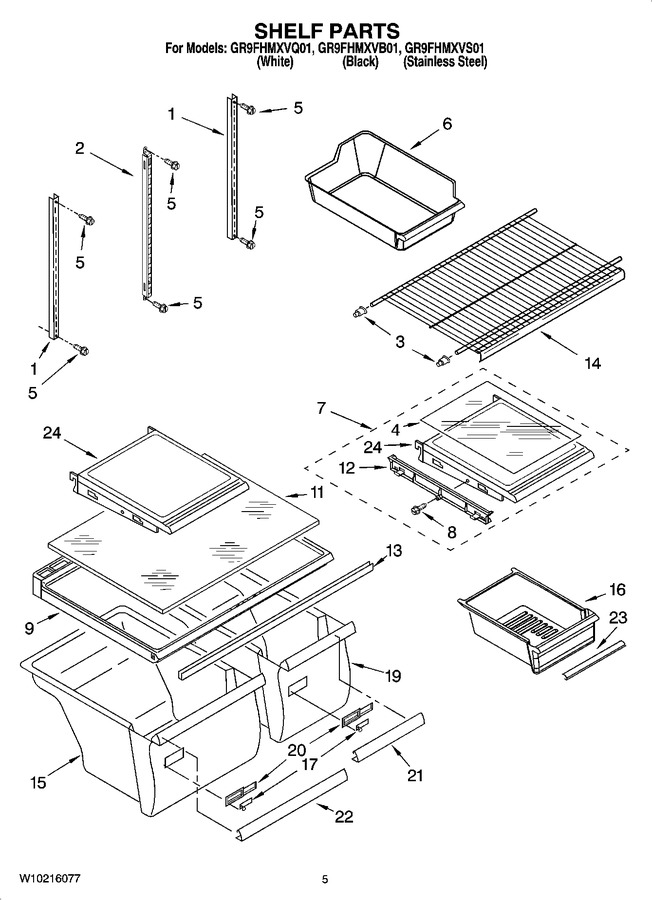

03 - Shelf Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Icemaker Parts


07 - Freezer Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2300520		Shelf, Ladder Center				$ 75.36
3	WPW10130299		Cup, Shelf Mounting   (Replaces: 2163762)			Immediately	$ 13.23
4	2214912		Shelf, Glass		Appelez-nous	-
5	WP489478		Screw   (Replaces: 489478)				$ 7.36
6	2254352A		Ice Bucket   (Replaces: 2254352)				$ 52.78
7	2214910		Shelf, Cantilever Meat Pan (complete)				$ 109.57
8	WP3400065		Screw   (Replaces: 3400065)			Immediately	$ 7.36
9	WP2314548		Crisper Cover   (Replaces: 2314497)				$ 233.85
11	WP2169921		Glass, Crisper Cover   (Replaces: 2221693)				$ 233.04
12	2214892		Slide Pan		Appelez-nous	-
13	WP2172748		Crisper, Support   (Replaces: 2314477)				$ 91.87
14	WP2176275		Shelf, Freezer   (Replaces: 2176275)				$ 111.06
15	W10854037		Pan, Crisper (13-inch) (includes 17, 20 & 22)   (Replaces: 2218130)			Immediately	$ 161.27
16	WP2218127K		Pan, Meat   (Replaces: 2218127)				$ 132.12
17	WP2176222		Slide, Humidity Control   (Replaces: 2176222)				$ 27.35
19	W10856580		Pan, Crisper (10-inch) (includes 17, 20 & 21)   (Replaces: 2218129)			Immediately	$ 159.33
20	W11819839		Body, Humidity Control   (Replaces: 2212446)				$ 14.23
21	2195340		Trim, Crisper Pan				$ 7.07
22	WP2195341		Trim, Crisper Pan   (Replaces: 2195341)				$ 78.00
23	2176356		Trim, Meat Pan		Appelez-nous	-
24	2214908		Shelf Assembly, Spillguard (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
