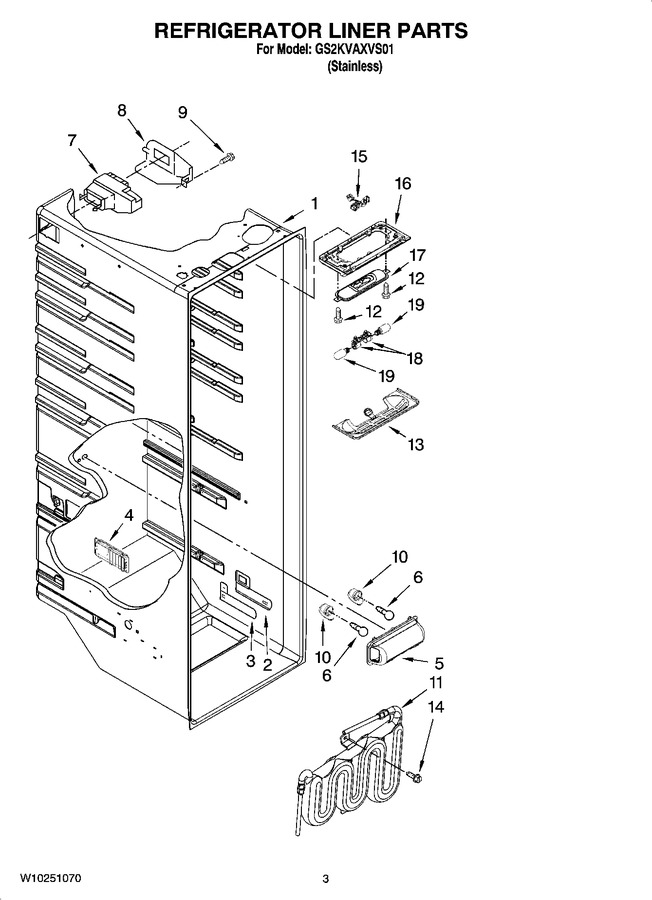

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	W10175967		Escutcheon, Meat Pan Control				$ 77.20
3	2182757		Slide Meat Pan Control				$ 75.15
4	2257741		Louver		Appelez-nous	-
5	W11239891		Light Lens   (Replaces: W10166019)				$ 91.37
6	W11679940		Light Bulb   (Replaces: W10194422)			Immediately	$ 10.17
7	W10899382		Air Diffuser Assembly   (Replaces: W10128734)				$ 181.30
8	W10128735		Air Diffuser Cover		Appelez-nous	-
9	W10759522		Screw   (Replaces: 486298)				$ 7.42
10	4387478		Socket   (Replaces: 2162085)			Immediately	$ 104.10
11	WPW10276792		Reservoir   (Replaces: W10204356)				$ 130.01
12	WP489478		Screw   (Replaces: 489478)				$ 7.36
13	2223506		Light Lens				$ 47.17
14	488280		Screw (2)		Appelez-nous	-
15	2310527		Wire Assy - Rc Light		Appelez-nous	-
16	W10284481		Trim, Rc Light   (Replaces: 2326209)		Appelez-nous	-
17	2223680		Shield, Heat				$ 84.17
18	WPW10191429		Socket, Light   (Replaces: 2223857)				$ 7.92
19	WPA3073101		Bulb, Light   (Replaces: 2326255)			Immediately	$ 11.45
