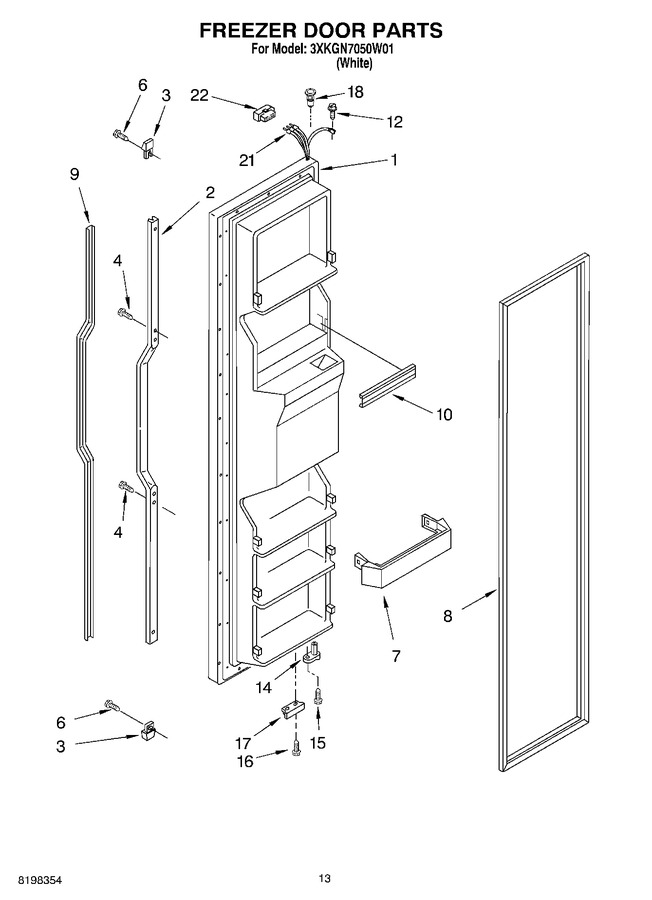

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2220750W		Freezer Door (includes No.8 And Dispenser Front Parts)		Appelez-nous	-
2	2194777W		Retainer, Insert		Appelez-nous	-
3	2194778W		End Cap (2)		Appelez-nous	-
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
6	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
7	2171070		Shelf Bin (4)		Appelez-nous	-
8	2159074		Door Gasket, Magnetic   (Replaces: 2221303)				$ 325.70
9	2173825		Insert, Handle		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 24.27
12	WP3400906		Screw   (Replaces: 489000)				$ 9.05
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 7.20
15	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
16	WP489483		Screw   (Replaces: 489420)				$ 11.41
17	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
18	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
21	2200400		Wire Harness		Appelez-nous	-
22	WP2154473		Housing Connector   (Replaces: 2154473)				$ 24.83
