SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Shelf

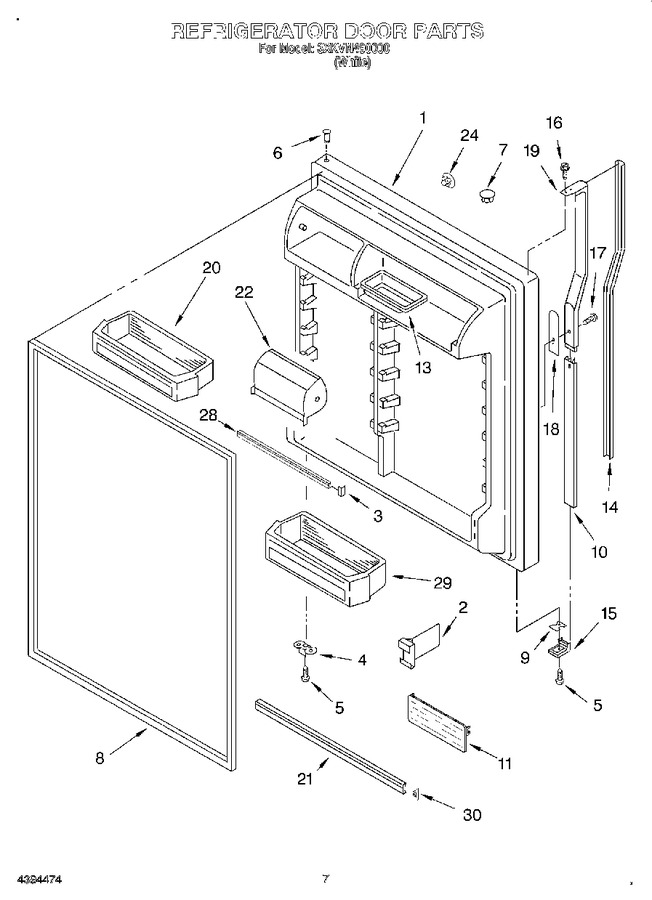

04 - Refrigerator Door


05 - Unit


06 - Ice Maker


07 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2159448		Refrigerator Door (includes No.6 & No.8)		Appelez-nous	-
2	2152335		Divider-door Bin		Appelez-nous	-
3	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 8.03
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
7	WP2212648		Hole Plug   (Replaces: 844478)			Immediately	$ 8.19
8	2159057		Door Gasket, Magnetic			Immediately	$ 187.51
9	2151813		Shim, Handle		Appelez-nous	-
10	2168900		Retainer, Insert		Appelez-nous	-
11	2159303		Shelf, Flip-up		Appelez-nous	-
13	2165792		Tray, Butter		Appelez-nous	-
14	2168896		Insert, Handle		Appelez-nous	-
15	1107236		End Cap, Handle		Appelez-nous	-
16	WP488920		Screw   (Replaces: 489006)				$ 7.98
17	WP488729		Screw   (Replaces: 487909)			Immediately	$ 8.28
18	1107650		Spacer, Handle		Appelez-nous	-
19	2161508		Handle				$ 111.30
20	2180029		Bin, Door Shelf (narrow) (2)		Appelez-nous	-
21	2193216		Trim, Shelf		Appelez-nous	-
22	WP2218113		Door, Compartment   (Replaces: 2171036)			Immediately	$ 50.33
24	WP2189000		Hole Plug, Handle   (Replaces: 1122653)			Immediately	$ 7.77
28	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 124.32
29	2180030		Bin, Door Shelf (wide) (2)		Appelez-nous	-
30	2159300		Plug-trim				$ 4.83

    View Diagram in Separate Window       Print Part List
