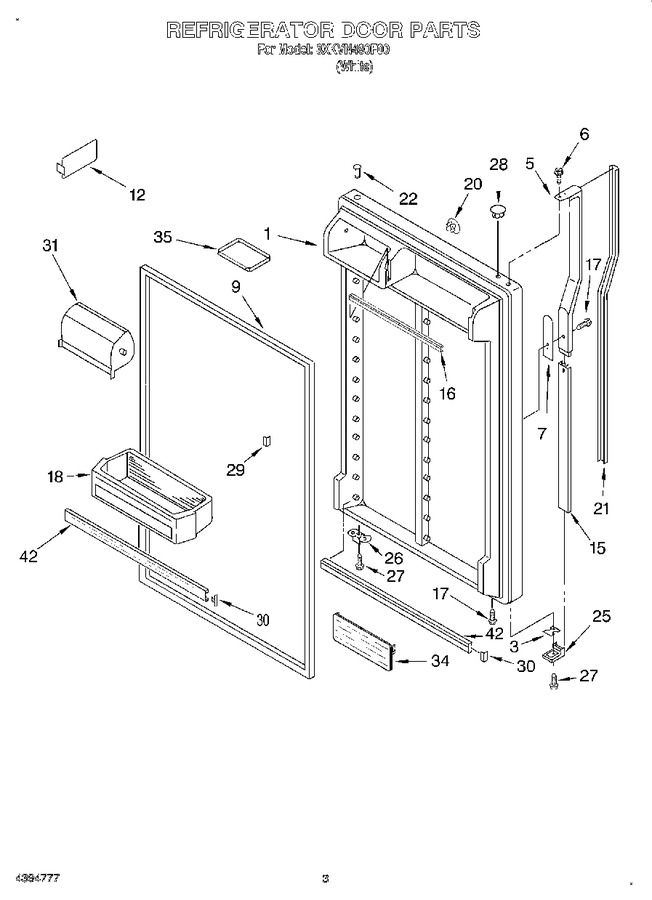

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183898 | Refrigerator Door (includes No.9, No.22) |
|
- | |||||
| 3 | 2151813 | Shim |
|
- | |||||
| 5 | 2161508 | Handle, Center |
|
$ 111.30 | |||||
| 6 | WP488920 | Screw (Replaces: 489006) |
|
$ 7.98 | |||||
| 7 | 1107650 | Spacer |
|
- | |||||
| 9 | 2159057 | Door Gasket, Magnetic (mist Beige) |
|
Immediately | $ 187.51 | ||||
| 12 | 1123293 | Divider, Door Shelf |
|
- | |||||
| 15 | 2168900 | Retainer |
|
- | |||||
| 16 | WP2201061 | Trim, Door Shelf (Replaces: 2180027) |
|
$ 124.32 | |||||
| 17 | WP488729 | Screw (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 18 | 2195394 | Door Bin (3) |
|
- | |||||
| 20 | WP2189000 | Hole Plug (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 21 | 2168896 | Insert, Handle |
|
- | |||||
| 22 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 25 | 1107236 | End Cap |
|
- | |||||
| 26 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 27 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 28 | WP2212648 | Hole Plug (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 29 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 8.03 | ||||
| 30 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.79 | ||||
| 31 | WP2218113 | Compartment Door (Replaces: 2171036) |
|
Immediately | $ 50.33 | ||||
| 34 | 2159303 | Shelf, Flip-up |
|
- | |||||
| 35 | 2165792 | Tray, Butter |
|
- | |||||
| 42 | WPW10421484 | Trim, Door (Replaces: 2177260) |
|
$ 136.25 | |||||
| 100 | 2197525 | Featurepak (includes 12,16, 18,29,30,34, 37,42) Also See Shelf Page. |
|
- |
