SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Shelf

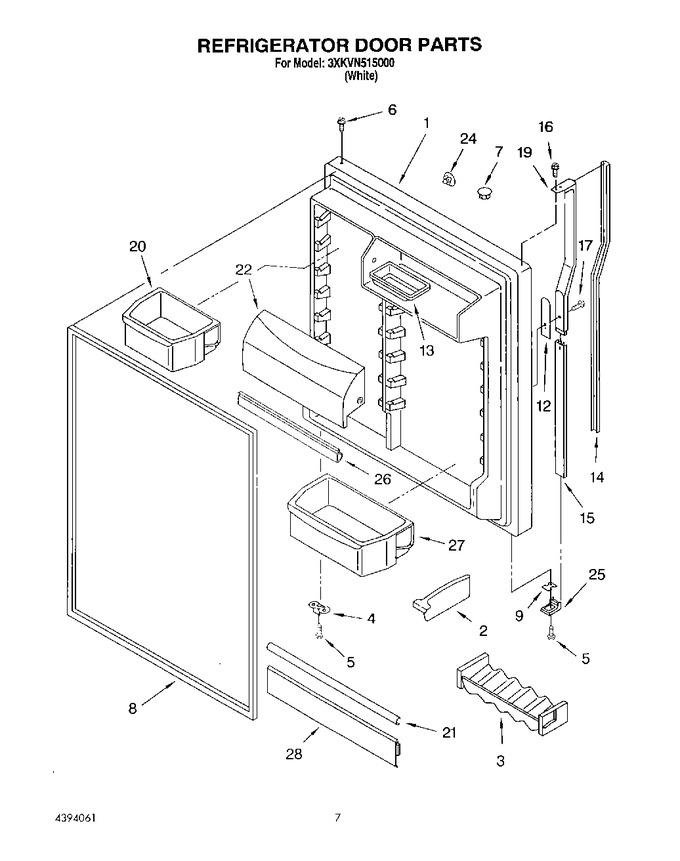

04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2159285		Refrigerator Door (includes No.8)		Appelez-nous	-
2	2171283		Divider, Door Bin		Appelez-nous	-
3	1125981		Holder, Beverage		Appelez-nous	-
4	2159368		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug   (Replaces: 844478)			Immediately	$ 8.19
8	2159057		Door Gasket, Magnetic (service)   (Replaces: 2177307)			Immediately	$ 187.51
9	2151813		Shim, Handle		Appelez-nous	-
12	1107650		Spacer, Door Handle		Appelez-nous	-
13	1125936		Butter, Tray		Appelez-nous	-
14	2168896		Insert, Handle		Appelez-nous	-
15	2168900		Retainer, Insert		Appelez-nous	-
16	WP488920		Screw   (Replaces: 489006)				$ 7.98
17	WP488729		Screw   (Replaces: 487909)			Immediately	$ 8.28
19	2161508		Handle				$ 111.30
20	2171065		Bin, Door Shelf (3)		Appelez-nous	-
21	WPW10421484		Trim, Trivet   (Replaces: 2177250)				$ 136.25
22	2182399		Door, Compartment		Appelez-nous	-
24	WP2189000		Hole Plug, Handle   (Replaces: 1122653)			Immediately	$ 7.77
25	1107236		End Cap Bottom		Appelez-nous	-
26	2159124		Gasket, Door Compartment		Appelez-nous	-
27	2171062		Bin, Door				$ 40.08
28	WPW10421484		Trivet, Door   (Replaces: 2171249)				$ 136.25

    View Diagram in Separate Window       Print Part List
