SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Shelf

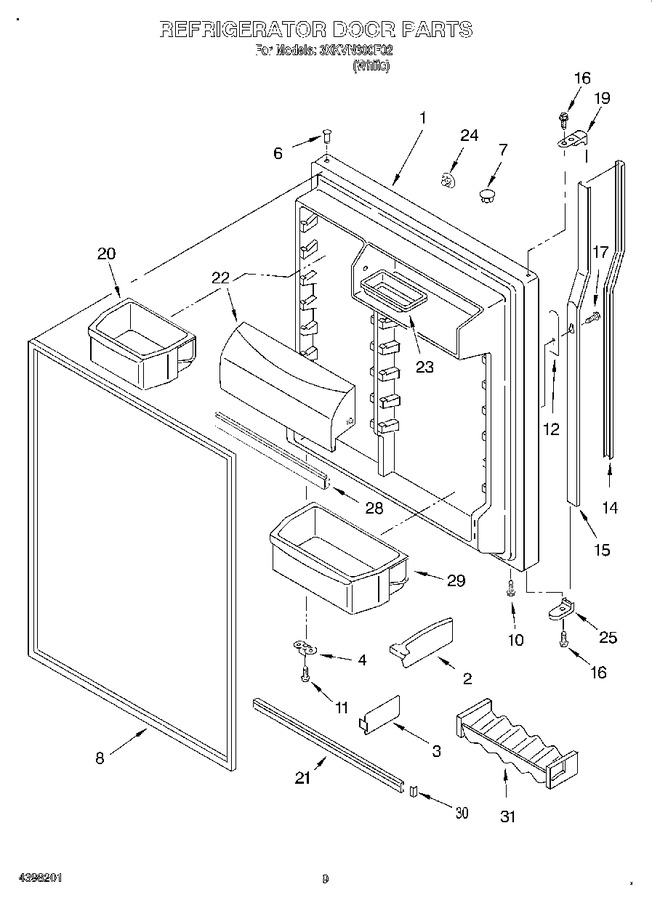

04 - Unit


05 - Refrigerator Door


06 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183935		Refrigerator Door (includes No.8)		Appelez-nous	-
2	1123293		Divider, Door Bin		Appelez-nous	-
3	1123293		Divider, Door Shelf		Appelez-nous	-
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
6	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
7	WP2212648		Hole Plug   (Replaces: 844478)			Immediately	$ 8.19
8	2159061		Door Gasket, Magnetic			Immediately	$ 183.67
10	WP8281206		Screw   (Replaces: 489028)				$ 8.37
11	WP8281206		Screw   (Replaces: 489028)				$ 8.37
12	2188146		Spacer, Door Handle		Appelez-nous	-
14	2195986		Insert, Handle		Appelez-nous	-
15	1107236		End Cap, Handle		Appelez-nous	-
16	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
17	3400873		Screw		Appelez-nous	-
19	2195995W		Endcap, Top				$ 10.04
20	2171066		Bin, Door Shelf (2)		Appelez-nous	-
21	WPW10421486		Shelf, Trim   (Replaces: 2195948)				$ 114.74
22	2182399		Door, Compartment		Appelez-nous	-
23	2165792		Tray, Butter		Appelez-nous	-
24	WP2189000		Hole Plug, Handle   (Replaces: 2189000)			Immediately	$ 7.77
25	2195990		Endcap, Bottom				$ 9.50
28	2159124		Gasket, Door Compartment		Appelez-nous	-
29	2171063		Bin, Door Shelf		Appelez-nous	-
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
31	2193409		Beverage Holder				$ 48.13
32	2200791		Featurepak (includes 3, 20 21, 23, 29, 30 & 31. See Also Shelf Parts And Freezer Door Parts Page.)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
