Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10190972 Ice Maker Assy   (Replaces: 67002377) Special Order $ 177.49

2 D7846203 Shield, Ice Maker Appelez-nous -
2 67002384 Harness, Ice Maker Appelez-nous -
2 12671401 Assy, Im Arm/wire Appelez-nous -
2 WP2256087 Brkt, Ice Maker   (Replaces: B8391803) Special Order $ 97.65

3 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 8.25

4 WPW10289690 Cover, Ice Maker   (Replaces: 12582501) In-Stock Immediately $ 8.82

5 67005375 Glide, Frz (lt)   (Replaces: D7849906) Special Order $ 312.82

6 67006529 Screw, Sm (stnls)   (Replaces: M0213530) Special Order $ 13.47

7 D7849907 Glide, Frz (rt) Appelez-nous -
8 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

8 67002267 Back, Inner Fz Appelez-nous -
9 M0581003 Grommet, Screw Appelez-nous -
9 12583101 Cover, Supply Air Appelez-nous -
9 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

10 B8386604 Gasket, Air Appelez-nous -
11 WPW10139210 Screw, Tc   (Replaces: M0226528) Special Order $ 8.03

11 C8931609 Capacitor (420 Vac) Appelez-nous -
12 67002700 Motor, Auger Appelez-nous -
12 WPW10139210 Screw, Tc   (Replaces: M0226528) Special Order $ 8.03

12 67003064 Harness, Auger Motor Appelez-nous -
13 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

13 67003364 Cover, Auger Appelez-nous -
14 W11447232 Socket, Light   (Replaces: 67002216) In-Stock Immediately $ 13.87

15 10114901 Driver (ice Maker) Special Order $ 1.61

16 WPM0223101 Nut, Locking   (Replaces: M0223101) Special Order $ 8.06

17 12583001 Shield, Fz Light Appelez-nous -
18 67002217 Lamp, 25w/50hz Appelez-nous -
19 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

19 12403401 Cover, Evap Appelez-nous -
20 12582102 Shelf, Quick Chill Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

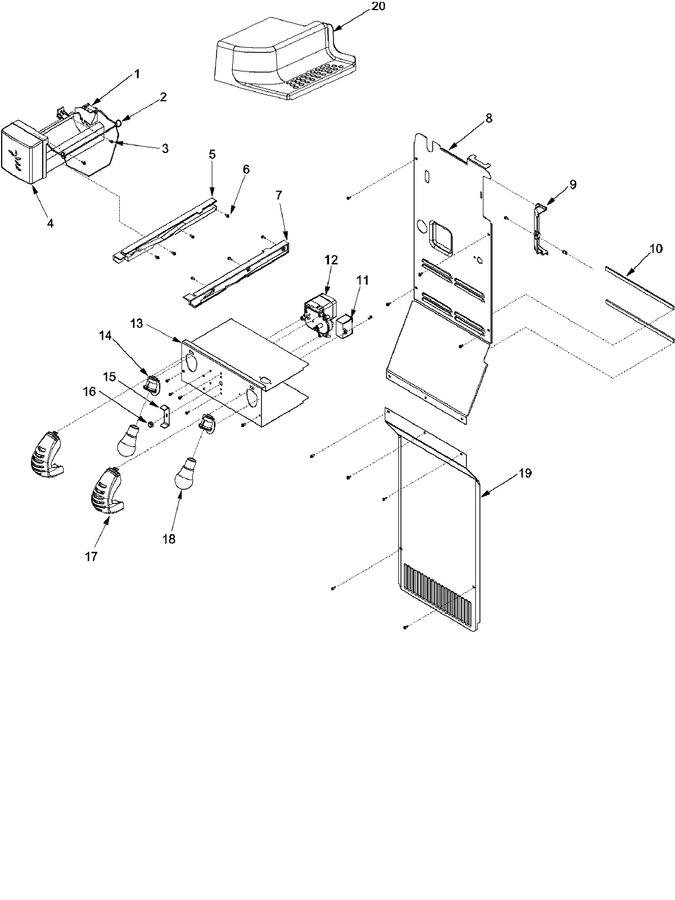

Diagram for JS2428GEHB (BOM: PJS2428GHB0)
