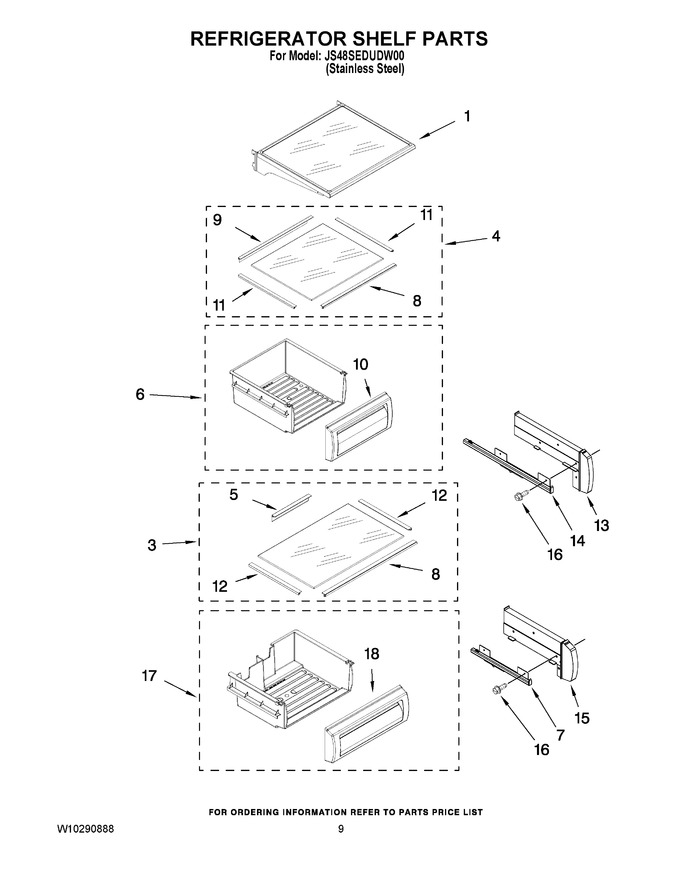

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2222593		Shelf Assembly (4)   (Replaces: W10141495)				$ 288.14
3	W10151216		Assembly, Meat Pan Cover				$ 92.42
4	W10151214		Assembly, Crisper Cover				$ 196.14
5	2257583		Trim, Glass Rear		Appelez-nous	-
6	W10407625		Crisper Pan (2)   (Replaces: 2252413)				$ 160.31
7	2302954		Slide, Meat Pan (left Side)				$ 309.14
7	2302955		Slide, Meat Pan (right Side)				$ 308.86
8	N/P		Trim, Glass Front (not Serviceable)		Appelez-nous	-
9	2256255		Trim, Glass Rear		Appelez-nous	-
10	W10407625		Front, Crisper Pan   (Replaces: 2256249)				$ 160.31
11	2252255		Trim, Glass Side Crisper Pan		Appelez-nous	-
12	2256250		Trim, Glass Side Meat Pan		Appelez-nous	-
13	2256223		Spacer, Crisper (left Side (2))				$ 76.04
13	2256222		Spacer, Crisper (right Side (2))				$ 80.32
14	2302957		Slide, Crisper (left Side)				$ 205.50
14	2302956		Slide, Crisper (right Side)				$ 268.86
15	2256243		Spacer, Meat Pan (left Side)				$ 74.74
15	2256244		Spacer, Meat Pan (right Side)				$ 93.33
16	WP8533928		Screw (left Side- (8-18 X .750))   (Replaces: 8533928)			Immediately	$ 7.43
16	W11830745		Screw (right Side- (8-18 X 1.375))   (Replaces: 8533929)		Appelez-nous	-
17	W10407628		Pan Assembly Meat   (Replaces: 2256370)				$ 153.84
18	WP2256367		Front, Meat Pan   (Replaces: 2256367)				$ 164.48

    View Diagram in Separate Window       Print Part List
