SELECT A DIAGRAM

01 - Cabinet Parts


02 - Shelf Parts

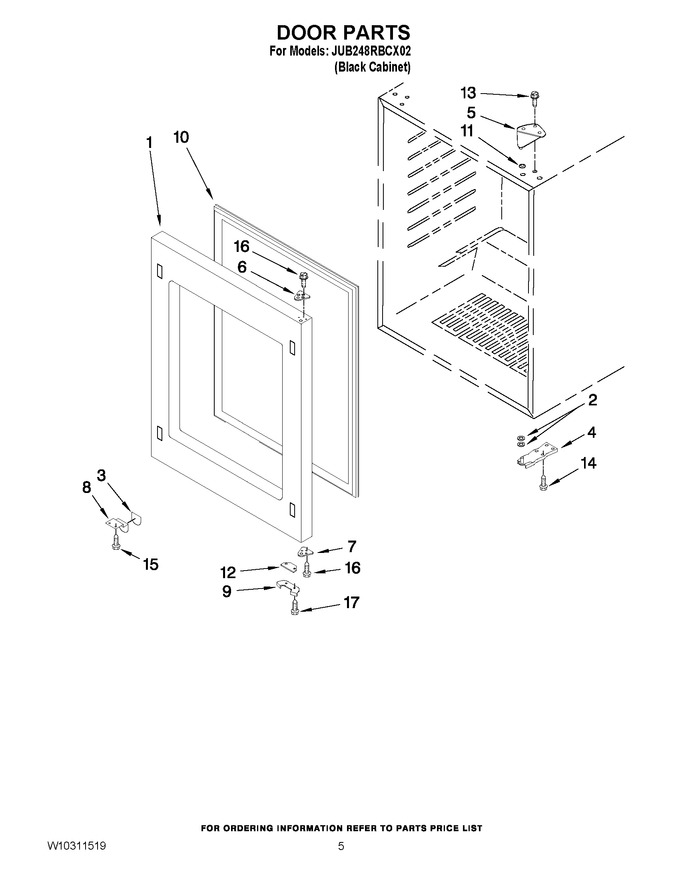

03 - Door Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10163280		Door Assembly (includes Gasket)				$ 648.94
2	W11241702		Washer/bottom   (Replaces: W10162992)				$ 12.84
3	W10163191		Gasket-push Plate				$ 14.85
4	W10239363		Hinge, Bottom				$ 72.55
5	4344754		Hinge, Top				$ 80.11
6	4344804		Spacer, Top Hinge				$ 18.03
7	4344798		Spacer, Bottom Hinge				$ 18.03
8	4344757		Actuator, Switch				$ 138.67
9	4344802		Door Stop				$ 19.78
10	WPW10238068		Door Gasket   (Replaces: W10238068)				$ 312.31
11	4344760		Washer				$ 14.32
12	4344803		Spacer, Door				$ 157.94
13	4344796		Screw				$ 15.14
14	4344906		Screw, Lower Hinge (quantity 1)		Appelez-nous	-
14	W10243104		Screw, Lower Hinge (quantity 3)		Appelez-nous	-
15	W10837731		Screw   (Replaces: W10204865)				$ 7.47
16	4344800		Screw		Appelez-nous	-
17	4344801		Screw				$ 15.14
NI	4344818		Installation Kit, Door Panel				$ 129.52

    View Diagram in Separate Window       Print Part List
