SELECT A DIAGRAM

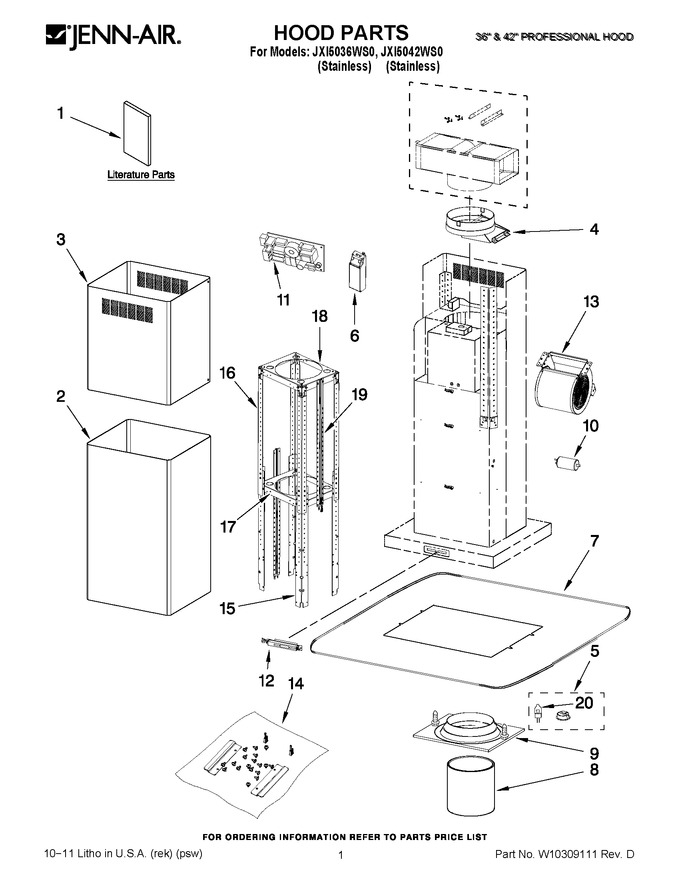

01 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10274308		Use & Care Guide		Appelez-nous	-
2	W10292881		Cover, Lower Duct		Appelez-nous	-
3	W10292884		Cover, Upper Duct		Appelez-nous	-
4	W10169956		Damper Assembly		Appelez-nous	-
5	WP8186678		Assembly, Bulb   (Replaces: 8186678)				$ 73.21
6	W11186486		Transformer   (Replaces: 8186686)			Immediately	$ 206.24
7	W10292885		Glass (36``)				$ 216.21
7	W10296311		Glass (42``)		Appelez-nous	-
8	W10292887		Filter, Grease				$ 285.75
9	W10292890		Support, Filter				$ 73.28
10	8186677		Capacitor				$ 212.19
11	WPW10291604		Board, Power   (Replaces: W10291604)				$ 284.26
12	WPW10293040		Lcd Display   (Replaces: W10293040)				$ 401.09
13	W10292880		Fan Assembly				$ 642.14
14	W10292914		Hardware, Install				$ 39.64
15	W10293064		Support, Lower Vertical		Appelez-nous	-
16	W10293063		Support, Upper Vertical				$ 77.67
17	W10297056		Support, Lower Horizontal				$ 128.43
18	W10297057		Support, Upper Horizontal		Appelez-nous	-
19	W10292907		Support, Vertical Duct Cover With Springs		Appelez-nous	-
20	WPW10298151		Bulb, Halogen   (Replaces: W10298151)			Immediately	$ 26.35
NI	W10272069		Filter, Charcoal				$ 216.51
NI	W10272065		Kit, Recirculation				$ 244.87
NI	W10272072		Kit, Chimney Extension		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
