SELECT A DIAGRAM

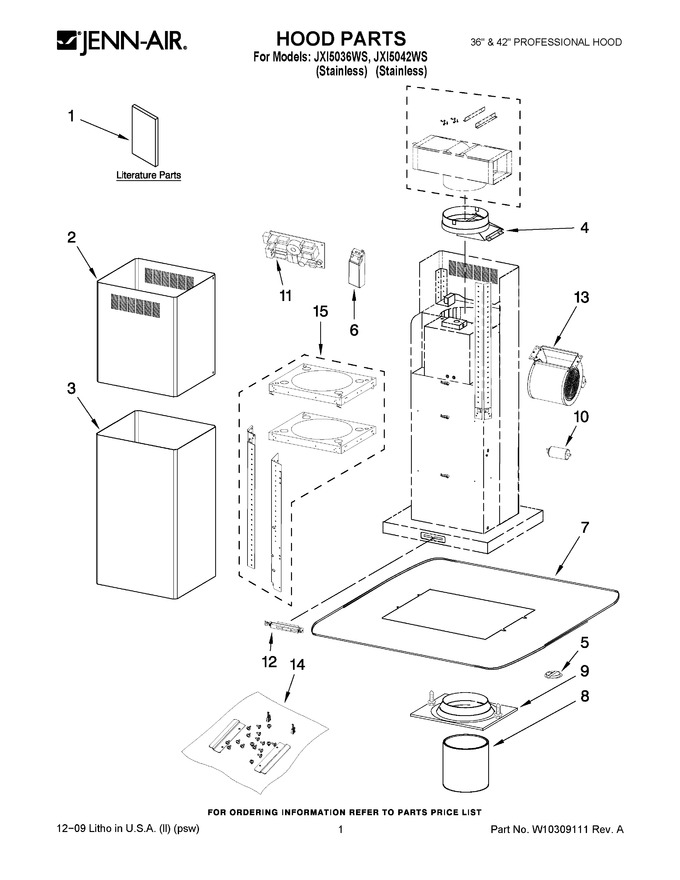

01 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10274308 | Use & Care Guide |
|
- | |||||
| 2 | W10292881 | Cover, Lower Duct |
|
- | |||||
| 3 | W10292884 | Cover, Upper Duct |
|
- | |||||
| 4 | W10169956 | Damper Assembly |
|
- | |||||
| 5 | WPW10298151 | Bulb, Halogen (Replaces: W10298151) |
|
Immediately | $ 26.35 | ||||
| 6 | W11186486 | Transformer (Replaces: 8186686) |
|
Immediately | $ 206.24 | ||||
| 7 | W10292885 | Glass (36``) |
|
$ 216.21 | |||||
| 7 | W10296311 | Glass (42``) |
|
- | |||||
| 8 | W10292887 | Filter, Grease |
|
$ 285.75 | |||||
| 9 | W10292890 | Support, Filter |
|
$ 73.28 | |||||
| 10 | 8186677 | Capacitor |
|
$ 212.19 | |||||
| 11 | WPW10291604 | Board, Power (Replaces: W10291604) |
|
$ 284.26 | |||||
| 12 | WPW10293040 | Lcd Display (Replaces: W10293040) |
|
$ 401.09 | |||||
| 13 | W10292880 | Fan Assembly |
|
$ 642.14 | |||||
| 14 | W10292890 | Hardware, Install |
|
$ 73.28 | |||||
| 15 | W10297057 | Mounting/support (mount, Upper) |
|
- | |||||
| 15 | W10293064 | Mounting/support (support, Lower) |
|
- | |||||
| 15 | W10293063 | Mounting/support (support, Upper) |
|
$ 77.67 | |||||
| 15 | W10297056 | Mounting/support (mount, Lower) |
|
$ 128.43 |
