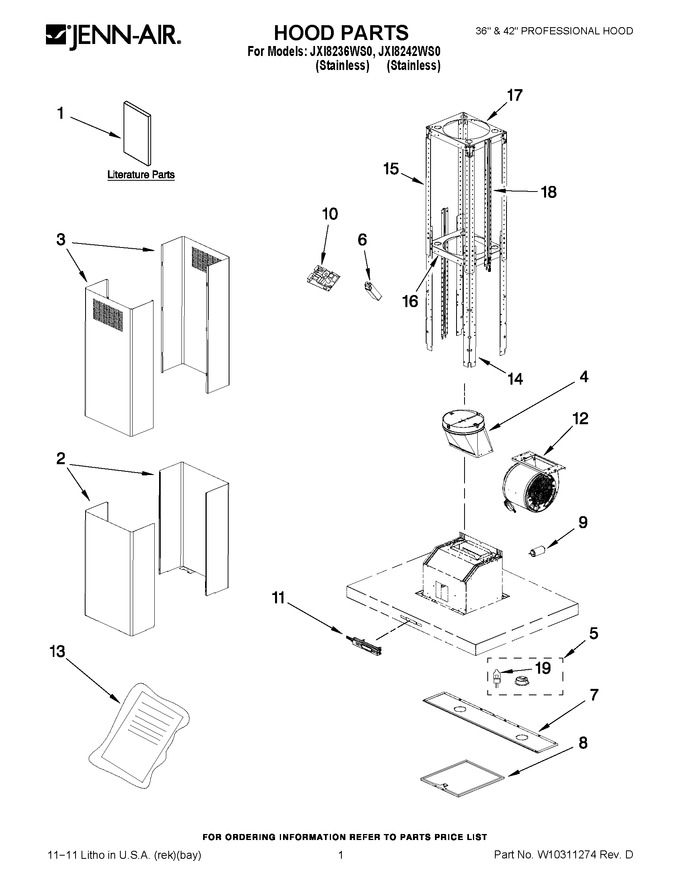

01 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10274313		Use & Care Guide		Appelez-nous	-
2	W11321565		Chimney, Lower   (Replaces: W10293061)				$ 358.34
3	W10351831		Chimney, Upper   (Replaces: W10293049)				$ 301.22
4	W10291603		Damper Assembly				$ 92.46
5	WP8186678		Bulb Assembly   (Replaces: 8186678)				$ 73.21
6	W11186486		Transformer   (Replaces: 8186686)			Immediately	$ 206.24
7	W10295825		Support, Light (42``)		Appelez-nous	-
7	W10295822		Support, Light (36``)		Appelez-nous	-
8	W10291612		Filter, Grease				$ 90.85
9	8186677		Capacitor				$ 212.19
10	WPW10291604		Board, Power   (Replaces: W10291604)				$ 284.26
11	W10295846		Control, Elect.				$ 398.54
12	WPW10291602		Fan Assembly   (Replaces: W10291602)			Immediately	$ 583.32
13	W10295837		Hardware, Install		Appelez-nous	-
14	W10293064		Support, Lower Vertical		Appelez-nous	-
15	W10293063		Support, Upper Vertical				$ 77.67
16	W10293065		Support, Lower Horizontal		Appelez-nous	-
17	W10297052		Support, Upper Horizontal		Appelez-nous	-
18	W10293054		Support, Vertical Duct Cover With Springs				$ 30.63
19	WPW10298151		Bulb, Halogen   (Replaces: W10298151)			Immediately	$ 26.35
NI	W10272068		Kit, Charcoal Filter			Immediately	$ 64.00
NI	W10272061		Kit, Recirculation				$ 273.95
NI	W10272078		Kit, Chimney Extension				$ 1,005.63
