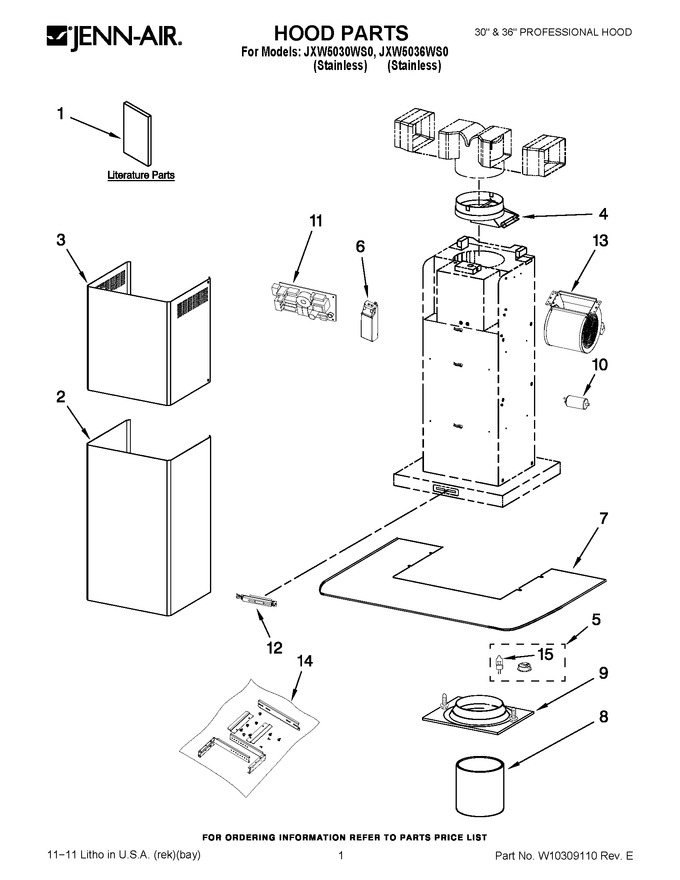

01 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10274303 | Use & Care Guide |
|
- | |||||
| 2 | W10293033 | Cover, Lower Duct |
|
$ 325.43 | |||||
| 3 | W10293030 | Cover, Upper Duct |
|
$ 329.46 | |||||
| 4 | W10169956 | Damper Assembly |
|
- | |||||
| 5 | WP8186678 | Bulb, Assembly (Replaces: 8186678) |
|
$ 73.21 | |||||
| 6 | W11186486 | Transformer (Replaces: 8186686) |
|
Immediately | $ 206.24 | ||||
| 7 | W10296310 | Glass (36``) |
|
- | |||||
| 7 | W10293039 | Glass (30``) |
|
- | |||||
| 8 | W10292887 | Filter, Grease |
|
$ 285.75 | |||||
| 9 | W10292890 | Support, Filter |
|
$ 73.28 | |||||
| 10 | 8186677 | Capacitor |
|
$ 212.19 | |||||
| 11 | WPW10291604 | Board, Power (Replaces: W10291604) |
|
$ 284.26 | |||||
| 12 | WPW10293040 | Lcd Display (Replaces: W10293040) |
|
$ 401.09 | |||||
| 13 | W10292880 | Fan Assembly |
|
$ 642.14 | |||||
| 14 | W10293037 | Hardware, Install |
|
$ 58.62 | |||||
| 15 | WPW10298151 | Bulb, Halogen (Replaces: W10298151) |
|
Immediately | $ 27.66 | ||||
| NI | W10272069 | Kit, Charcoal Filter |
|
$ 216.51 | |||||
| NI | W10272064 | Kit, Recirculation |
|
$ 328.97 | |||||
| NI | W10272071 | Kit, Chimney Extension |
|
$ 354.94 |
