SELECT A DIAGRAM

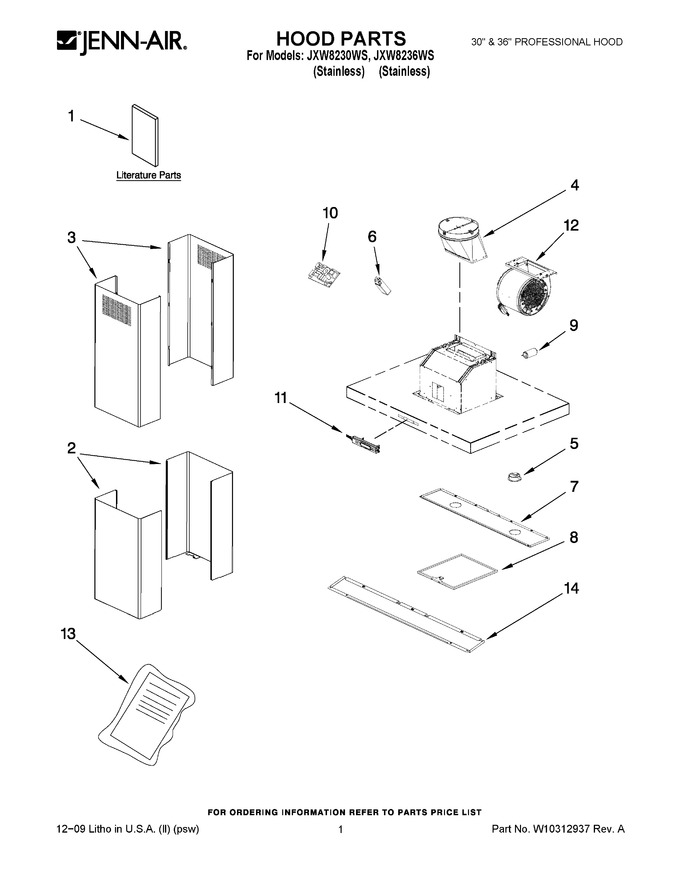

01 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10274312 | Use & Care Guide |
|
- | |||||
| 2 | W10296313 | Chimney, Lower |
|
$ 215.82 | |||||
| 3 | W11328694 | Chimney, Upper (Replaces: W10296312) |
|
Immediately | $ 356.45 | ||||
| 4 | W10291603 | Damper Assembly |
|
$ 92.46 | |||||
| 5 | WP8186678 | Bulb, Light (Replaces: 8186678) |
|
$ 73.21 | |||||
| 6 | W11186486 | Transformer (Replaces: 8186686) |
|
Immediately | $ 206.24 | ||||
| 7 | W10295829 | Support, Light (30``) |
|
- | |||||
| 7 | W10295831 | Support, Light (36``) |
|
- | |||||
| 8 | W10291612 | Filter, Grease |
|
$ 90.85 | |||||
| 9 | 8186677 | Capacitor |
|
$ 212.19 | |||||
| 10 | WPW10291604 | Board, Power (Replaces: W10291604) |
|
$ 284.26 | |||||
| 11 | W10295846 | Control, Elect. |
|
$ 398.54 | |||||
| 12 | WPW10291602 | Fan Assembly (Replaces: W10291602) |
|
Immediately | $ 583.32 | ||||
| 13 | W10296314 | Hardware, Install |
|
- | |||||
| 14 | W10291616 | Support, Filter (36``) |
|
- | |||||
| 14 | W10291607 | Support, Filter (30``) |
|
- |
