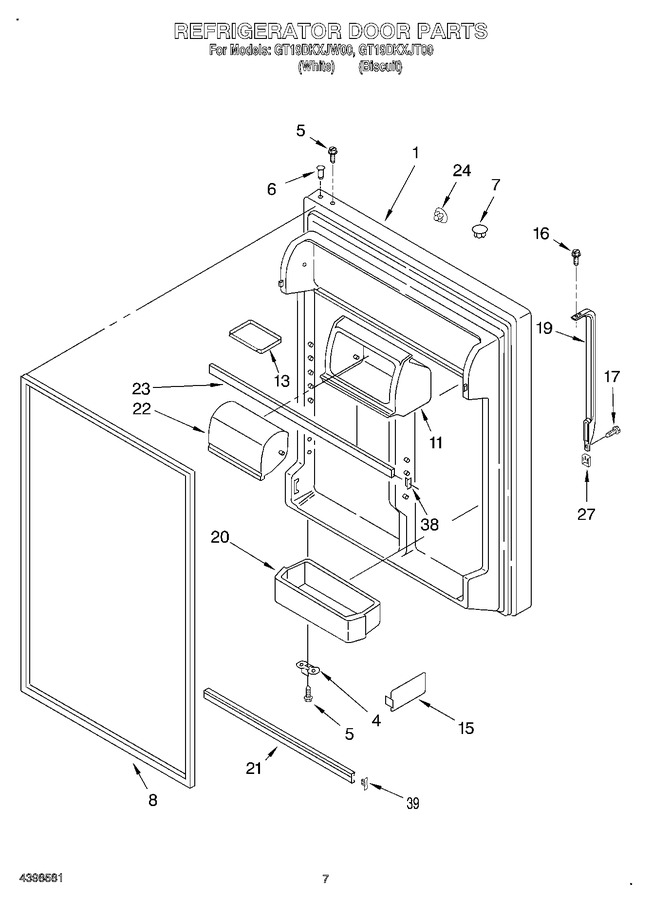

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183864		Refrigerator Door (includes No.6 & No.8) (white)		Appelez-nous	-
1	2205286		Refrigerator Door (includes No.6 & No.8) (biscuit)		Appelez-nous	-
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.42
6	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.37
7	WP2212649		Hole Plug (white)   (Replaces: 2200934)				$ 7.19
8	2159057		Door Gasket, Magnetic (mist Beige)			Immediately	$ 168.76
11	2156062		Housing Compartment		Appelez-nous	-
13	2159302		Tray, Door				$ 42.08
15	1123293		Divider		Appelez-nous	-
16	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
17	WP8281146		Screw   (Replaces: 8281146)				$ 7.36
19	4388947		Handle (white)   (Replaces: 2193351W)				$ 184.02
19	2193351T		Handle (biscuit)		Appelez-nous	-
20	2179605		Bin, Door (3)		Appelez-nous	-
21	WPW10421484		Trim, Door Shelf   (Replaces: 2195949)				$ 122.63
22	2182400		Door, Compartment		Appelez-nous	-
23	2159312		Trim-door Shelf				$ 47.75
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 6.99
24	WP2200936		Hole Plug, Handle (biscuit)   (Replaces: 2200936)				$ 7.17
27	WP2193353W		Cover, Endcap (white)   (Replaces: 2193353W)				$ 7.67
27	2193353T		Cover, Endcap (biscuit)		Appelez-nous	-
38	2177340		Endcap, Door Trim				$ 5.84
39	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 11.51
