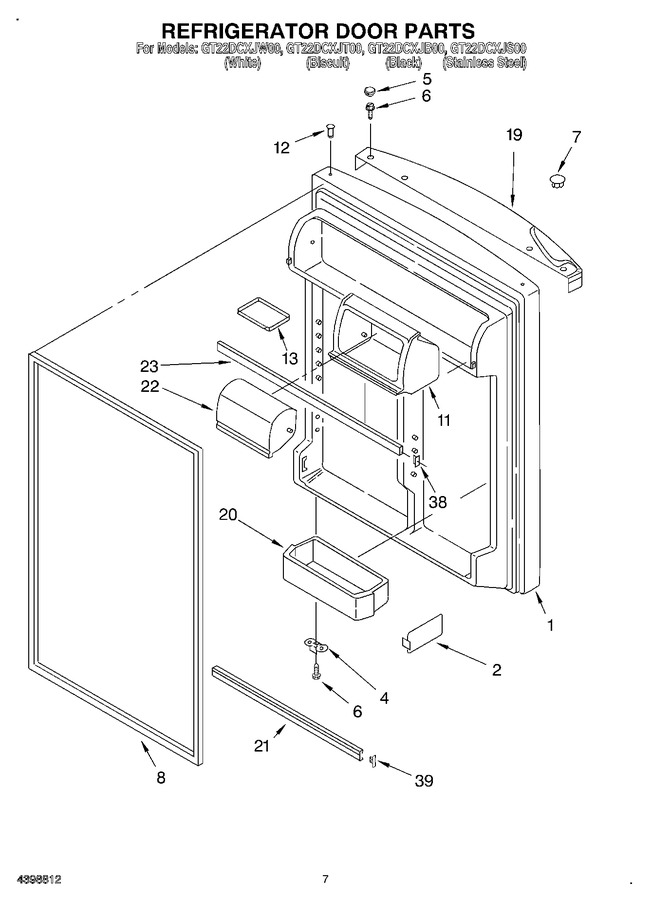

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2204867		Refrigerator Door (includes No.8 & No.12) (black)		Appelez-nous	-
1	2212558		Refrigerator Door (includes No.8 & No.12) (stainless, Brushed)		Appelez-nous	-
1	2202519		Refrigerator Door (includes No.8 & No.12) (white)		Appelez-nous	-
1	2204865		Refrigerator Door (includes No.8 & No.12) (biscuit)		Appelez-nous	-
2	1123293		Divider, Door Bin		Appelez-nous	-
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
5	2204840		Hole-plug Endcap (black)				$ 33.23
5	2204838		Hole-plug Endcap (biscuit)		Appelez-nous	-
5	2204837		Hole-plug Endcap (white)				$ 27.77
5	2212533		Hole-plug Endcap (grey)		Appelez-nous	-
6	WP681249		Screw, 8-18 X 3/4   (Replaces: 489276)			Immediately	$ 8.25
7	WP2212651		Hole Plug (black)   (Replaces: 2160808)				$ 24.21
7	WP2212649		Hole Plug (biscuit)   (Replaces: 2200934)				$ 7.99
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
8	2177311		Door Gasket, Magnetic (black)				$ 330.95
8	2159061		Door Gasket, Magnetic (mist Beige)			Immediately	$ 183.67
11	2156062		Housing Compartment		Appelez-nous	-
12	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
13	2195388		Tray, Door		Appelez-nous	-
19	2205189		Handle (biscuit)		Appelez-nous	-
19	2205191		Handle (black)		Appelez-nous	-
19	2205188		Handle (white)		Appelez-nous	-
19	2212682		Handle (grey)		Appelez-nous	-
20	WP2204813		Bin, Door Shelf (3)   (Replaces: 2179606)			Immediately	$ 81.20
21	WPW10421486		Trim, Door Shelf   (Replaces: 2195948)				$ 114.74
22	2188398		Door, Compartment		Appelez-nous	-
23	2159306		Trim, Door Shelf				$ 53.20
38	2177340		Endcap, Door Trim				$ 5.84
39	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
