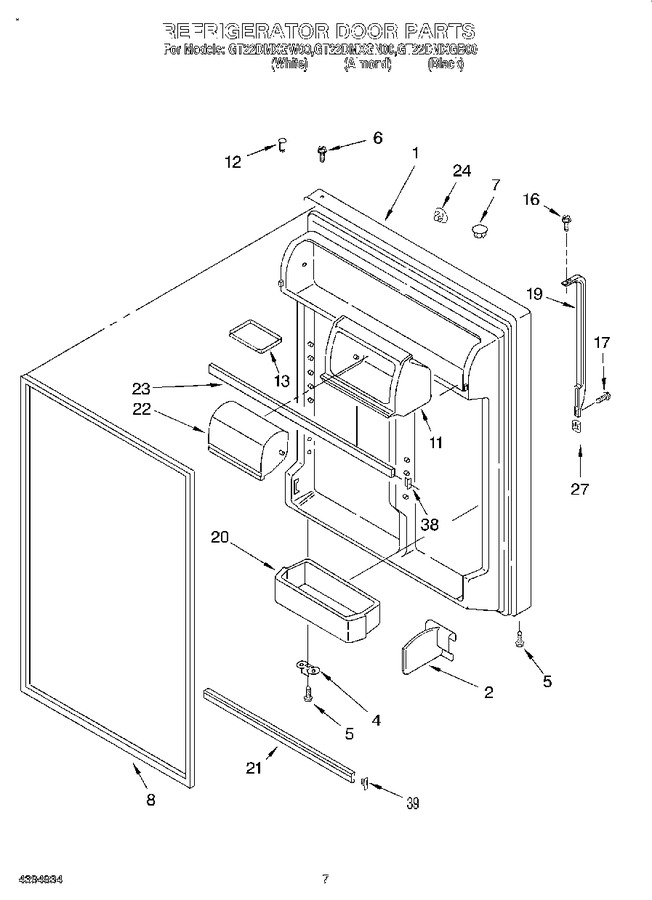

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183869 | Refrigerator Door (includes No.8 & No.12) (almond) |
|
- | |||||
| 1 | 2200615 | Refrigerator Door (includes No.8 & No.12) (black) |
|
- | |||||
| 1 | 2183868 | Refrigerator Door (includes No.8 & No.12) (white) |
|
- | |||||
| 2 | 1123293 | Divider, Door Bin |
|
- | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | WP8281206 | Screw, 8-15 X 1/2 (Replaces: 489028) |
|
$ 8.37 | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 7 | WP2212651 | Hole Plug (black) (Replaces: 2160808) |
|
$ 24.21 | |||||
| 7 | 989196 | Hole Plug (almond) |
|
- | |||||
| 8 | 2159061 | Door Gasket, Magnetic (mist Beige) |
|
Immediately | $ 183.67 | ||||
| 8 | 2177311 | Door Gasket, Magnetic (black) |
|
$ 330.95 | |||||
| 11 | 2156062 | Housing Compartment |
|
- | |||||
| 12 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 13 | 2195388 | Tray, Door |
|
- | |||||
| 16 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 17 | WP488729 | Screw (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 19 | 4388950 | Handle (black) (Replaces: 2193351B) |
|
$ 235.81 | |||||
| 19 | 2193351N | Handle (almond) |
|
- | |||||
| 19 | 4388947 | Handle (white) (Replaces: 2193351W) |
|
$ 204.47 | |||||
| 20 | WP2204813 | Bin, Door Shelf (3) (Replaces: 2179606) |
|
Immediately | $ 81.20 | ||||
| 21 | 2195498 | Trim, Door Shelf |
|
- | |||||
| 22 | 2182400 | Door, Compartment |
|
- | |||||
| 23 | 2159306 | Trim, Door Shelf |
|
$ 53.20 | |||||
| 24 | 2189008 | Hole Plug, Handle (almond) |
|
- | |||||
| 24 | WP2189009 | Hole Plug, Handle (black) (Replaces: 2189009) |
|
$ 7.61 | |||||
| 24 | WP2189000 | Hole Plug, Handle (white) (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 27 | 2193353B | Cover, Endcap (black) |
|
$ 5.85 | |||||
| 27 | 2193353N | Cover, Endcap (almond) |
|
- | |||||
| 27 | WP2193353W | Cover, Endcap (white) (Replaces: 2193353W) |
|
$ 8.52 | |||||
| 38 | 2177340 | Endcap, Door Trim |
|
$ 5.84 | |||||
| 39 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.79 | ||||
| 100 | 2199049 | Featurepak (includes 2,11, 20,21,22,23,39) Also See Frz.dr. & Shelf Pages. |
|
- |
