SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Liner


03 - Shelf


04 - Refrigerator Door


05 - Unit

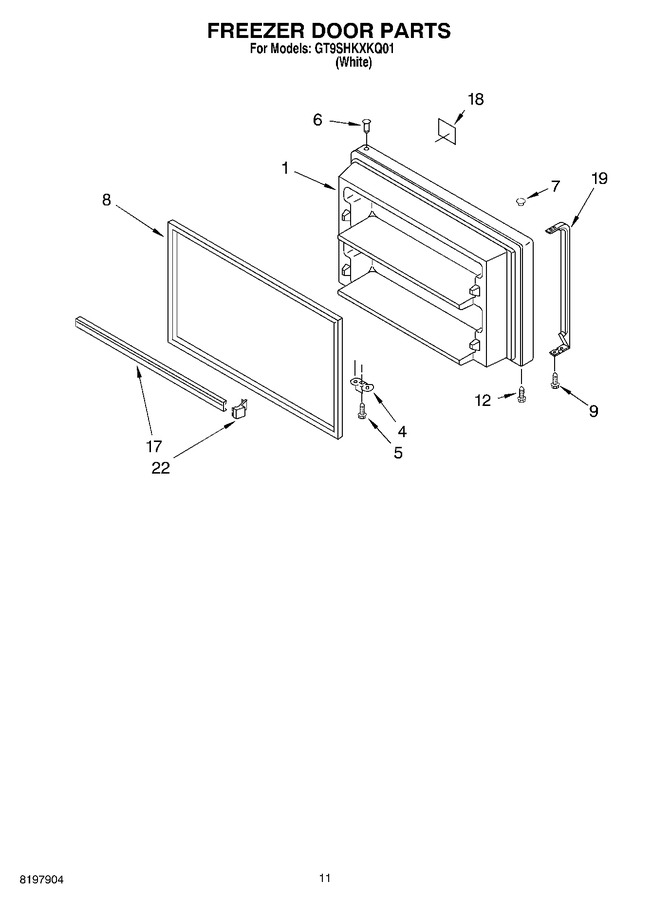

06 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183860		Freezer Door (includes No.6 & No.8) (white)		Appelez-nous	-
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
5	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.42
6	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
7	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.37
8	2159327		Door Gasket, Magnetic   (Replaces: 2214966)			Immediately	$ 148.12
9	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
12	WP8281206		Screw   (Replaces: 8281206)				$ 7.53
17	2195946		Trim, Door Shelf (2)				$ 46.58
18	2186437		Nameplate		Appelez-nous	-
19	4388947		Handle   (Replaces: 2213111W)				$ 184.02
22	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
22	W11729596		Eckmf-94   (Replaces: 2155469)			Immediately	$ 139.50
22	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
22	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
22	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
22	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
22	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
22	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 24.99
22	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
22	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
22	833938		Kit, Terminal Connector				$ 7.62
22	1117510		Torx Key				$ 5.84
22	WP2195916K		Endcap, Trim (4)   (Replaces: 2195916)			Immediately	$ 11.86
22	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
22	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
22	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 218.83
22	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
22	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
22	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
22	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
22	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
22	350942		Primer, White (12 Oz. Spray Can)				$ 84.73
22	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
22	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
22	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
22	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
22	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
