SELECT A DIAGRAM

01 - Unit, Literature


02 - Airflow


03 - Cabinet


04 - Control Module


05 - Optional

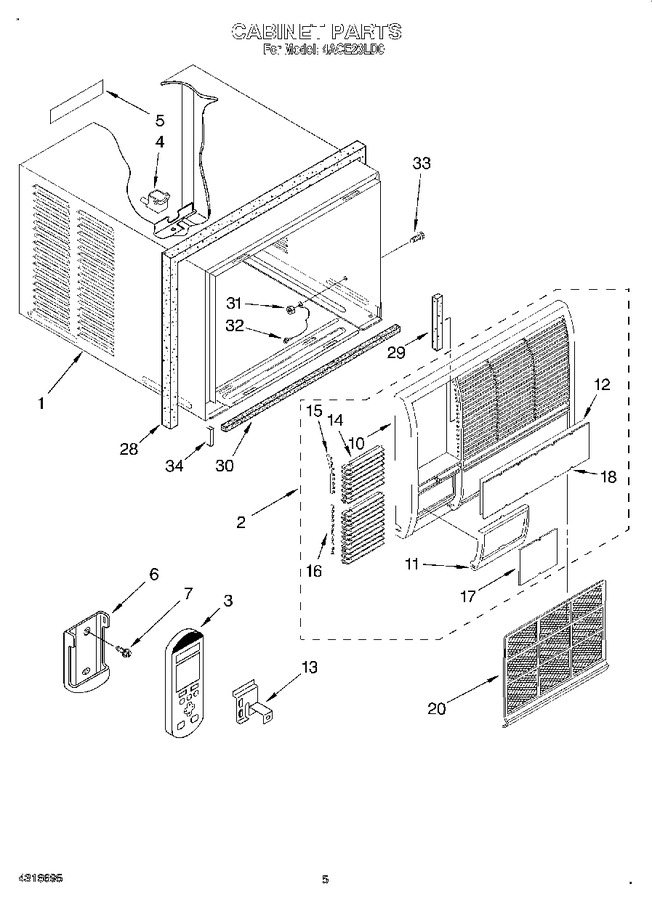

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1180468		Cabinet		Appelez-nous	-
2	1180274		Front (complete)		Appelez-nous	-
3	1180628		Remote, Deluxe		Appelez-nous	-
4	1180061		Cup, Drip		Appelez-nous	-
5	1180604		Label, Cabinet		Appelez-nous	-
6	1181032		Holder, Remote		Appelez-nous	-
7	1157141		Screw		Appelez-nous	-
10	1180275		Frame, Front		Appelez-nous	-
11	1180196		Door, Control		Appelez-nous	-
12	1180390		Paper, Decorative (front)		Appelez-nous	-
12	1180354		Paper, Decorative (control Door)		Appelez-nous	-
13	1180100		Bracket, Front Mounting		Appelez-nous	-
14	1180195		Louver, Horizontal (19 Required)		Appelez-nous	-
15	1180423		Link, Horizontal Louver (top)		Appelez-nous	-
16	1180281		Link, Horizontal Louver (bottom)		Appelez-nous	-
17	1180366		Cover, Clear (control Door)		Appelez-nous	-
18	1180283		Cover, Clear		Appelez-nous	-
20	1180276		Filter		Appelez-nous	-
28	1180704		Seal, Insulation		Appelez-nous	-
29	1180968		Seal, Front (right Side)		Appelez-nous	-
29	1180970		Seal, Front (left Side)		Appelez-nous	-
30	WP854334		Front   (Replaces: 1180460)				$ 13.94
31	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 6.47
32	1180417		Wire, Ground		Appelez-nous	-
33	WP488234		Screw, 8-32 X 1/4   (Replaces: 488777)				$ 7.08
34	1180634		Guard, Edge		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
