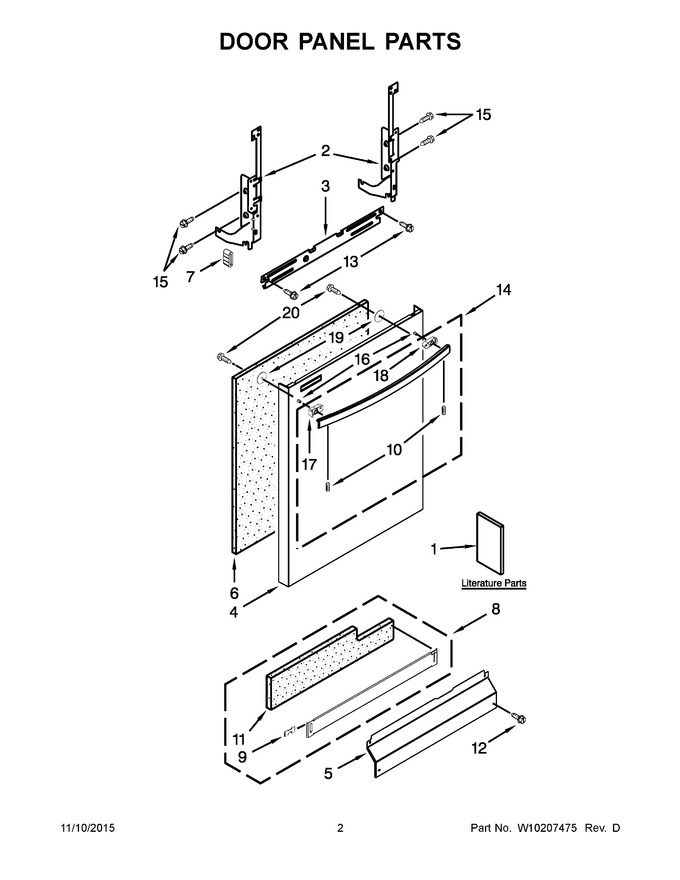

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10282553 | Instructions, Installation |
|
- | |||||
| 2 | W11806566 | Arm, Hinge (left Hand) (Replaces: W10143374) |
|
Immediately | $ 71.77 | ||||
| 3 | 8268983 | Brace, Door Cross |
|
$ 38.77 | |||||
| 4 | W10130955 | Panel Front (includes Item 16) (black) |
|
$ 136.09 | |||||
| 5 | W11763736 | Access Panel (includes Item 7) (black) (Replaces: W10195777) |
|
Immediately | $ 42.25 | ||||
| 6 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 96.23 | |||||
| 7 | WP8268961 | Sleeve, Friction (Replaces: 8268961) |
|
Immediately | $ 6.68 | ||||
| 8 | W10871196 | Toe Panel (includes Items 9 And 11) (black) (Replaces: W10205336) |
|
$ 174.04 | |||||
| 9 | WP8269016 | Clip, Ground (Replaces: 8269016) |
|
$ 11.21 | |||||
| 11 | W10831329 | Insulation, Toe Panel (Replaces: W10073540) |
|
Immediately | $ 43.30 | ||||
| 12 | WP302868 | Screw (black) (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 13 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 14 | W10142999 | Handle (black) |
|
- | |||||
| 15 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.80 | ||||
| 16 | WP8564951 | Stud, Mounting (Replaces: 8564951) |
|
Immediately | $ 19.33 | ||||
| 17 | W10131028 | Endcap, Left (black) |
|
$ 37.29 | |||||
| 18 | W10130962 | Endcap, Right (black) |
|
$ 53.36 | |||||
| 19 | W10142904 | Plate, Backing |
|
$ 50.57 | |||||
| 20 | WPW10348413 | Screw (Replaces: W10348413) |
|
Immediately | $ 8.41 | ||||
| 12A | WP3400836 | Screw (white) (Replaces: 3400836) |
|
$ 8.10 | |||||
| 14A | W10143000 | Handle (white) |
|
- | |||||
| 14B | W10142998 | Handle (ultimate Silver) |
|
$ 91.71 | |||||
| 17A | W10131030 | Endcap, Left (white) |
|
$ 55.90 | |||||
| 17B | W10131038 | Endcap, Left (ultimate Silver) |
|
- | |||||
| 18A | W10131029 | Endcap, Right (white) |
|
$ 54.03 | |||||
| 18B | W10164249 | Endcap, Right (ultimate Silver) |
|
$ 49.32 | |||||
| 1A | W10300250 | Energy Guide |
|
- | |||||
| 1B | W10142781 | Guide, Use & Care |
|
- | |||||
| 1C | W10142908 | Guide, Use & Care (spanish) |
|
- | |||||
| 1D | W10142800 | Tech Sheet |
|
- | |||||
| 2A | W11613572 | Arm, Hinge (right Hand) (Replaces: W10143373) |
|
Immediately | $ 83.93 | ||||
| 4A | W10133132 | Panel Front (includes Item 16) (white) |
|
$ 148.37 | |||||
| 4B | W10133134 | Panel Front (includes Item 16) (stainless) |
|
$ 168.13 | |||||
| 5A | WPW10441007 | Access Panel (includes Item 7) (white) (Replaces: W10195778) |
|
$ 170.94 | |||||
| 8A | W10799406 | Toe Panel (includes Items 9 And 11) (white) (Replaces: W10205337) |
|
$ 170.13 |
