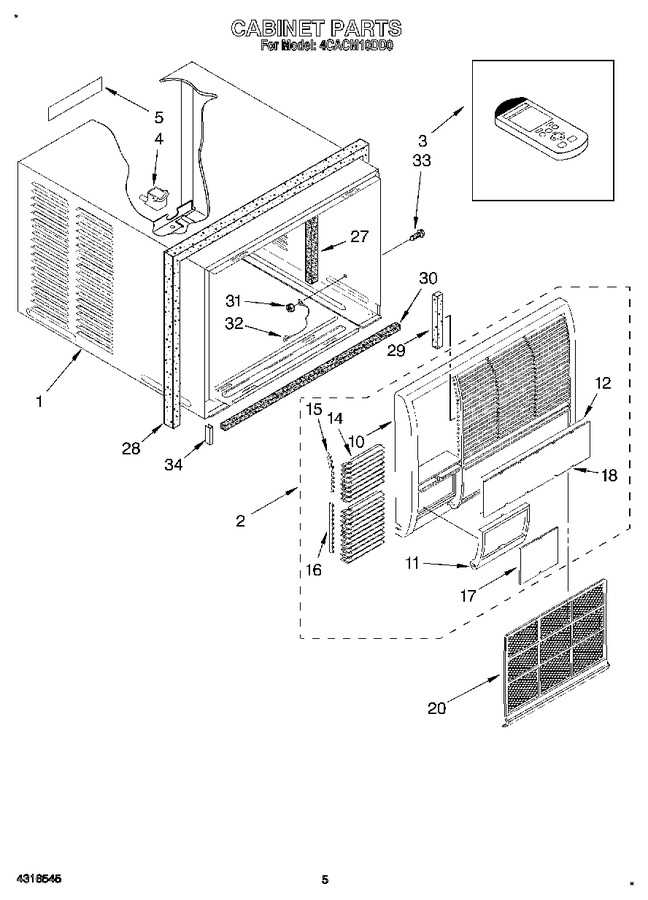

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1180467		Cabinet		Appelez-nous	-
2	1180190		Front (complete)		Appelez-nous	-
3	1180628		Remote, Deluxe		Appelez-nous	-
4	1180061		Cup, Drip		Appelez-nous	-
5	1180604		Label, Cabinet		Appelez-nous	-
10	1180191		Frame, Front		Appelez-nous	-
11	1180196		Door, Control		Appelez-nous	-
12	1180354		Paper, Decorative (control Door)		Appelez-nous	-
12	1180353		Paper, Decorative (front)		Appelez-nous	-
14	1180195		Louver, Horizontal (15 Required)		Appelez-nous	-
15	1180423		Link, Horizontal Louver (top)		Appelez-nous	-
16	1180197		Link, Horizontal Louver (bottom)		Appelez-nous	-
17	1180366		Cover, Clear (control Door)		Appelez-nous	-
18	1180199		Cover, Clear		Appelez-nous	-
20	1180192		Filter		Appelez-nous	-
27	1181048		Insulation, Cab.		Appelez-nous	-
28	1180704		Seal, Insulation		Appelez-nous	-
29	1180987		Seal, Front (left Side)		Appelez-nous	-
29	1180985		Seal, Front (right Side)		Appelez-nous	-
29	1180986		Seal, Front (bottom)		Appelez-nous	-
30	WP854334		Seal, Cabinet (front)   (Replaces: 1180111)				$ 13.94
31	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 6.47
32	1180417		Wire, Ground		Appelez-nous	-
33	WP488234		Screw,8-32x1/4   (Replaces: 488234)				$ 7.08
34	1180634		Guard, Edge		Appelez-nous	-
