SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Freezer Liner


04 - Freezer Door


05 - Refrigerator Door

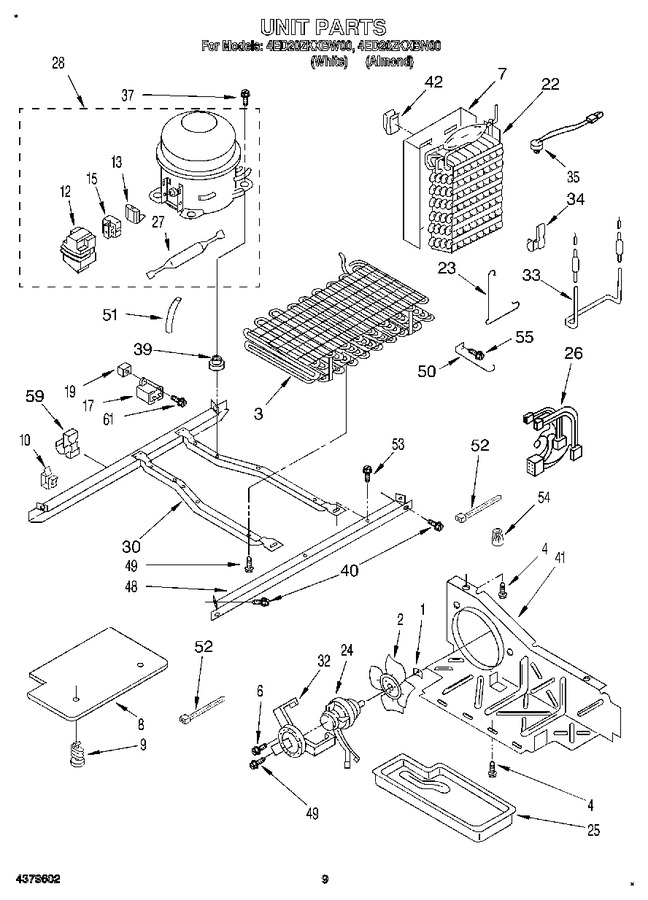

06 - Unit


07 - Air Flow


08 - Control, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	1108179		Fan, Blade				$ 49.54
3	2164513		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
6	681390		Screw   (Replaces: 489019)				$ 13.71
7	2149293		Heat Shield And Drain Pan		Appelez-nous	-
8	2160505		Cover, Unit Compartment		Appelez-nous	-
9	489396		Clip				$ 11.26
10	940073		Clip		Appelez-nous	-
12	WP2162358		Cover   (Replaces: 2162358)				$ 95.29
13	WP2169412		Overload   (Replaces: 2166712)				$ 151.70
15	WP2262184		Relay   (Replaces: 2154755)				$ 123.46
17	WP2201147		Capacitor   (Replaces: 2154718)				$ 135.42
19	509812		Screw Grommet		Appelez-nous	-
22	WP2188822		Evaporator   (Replaces: 2164518)			Immediately	$ 356.84
23	2161324		Clip		Appelez-nous	-
24	8201703		Motor, Fan   (Replaces: 2162430)				$ 371.70
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 158.16
26	2165296		Harness, Intermediate		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2164409)			Immediately	$ 57.13
28	W10183407		Compressor (includes Items 12, 13, 15, 17 & 27) (also Order)   (Replaces: 2169229)				$ 435.61
28	876765		Tube Kit			Immediately	$ 90.65
30	2160498		Unit Mounting Frame		Appelez-nous	-
32	2162062		Fan, Motor Bracket		Appelez-nous	-
33	2162213		Heater, Defrost		Appelez-nous	-
34	2161330		Clip, Heater		Appelez-nous	-
35	WPW10225581		Defrost, Bi-metal   (Replaces: 2161331)			Immediately	$ 50.77
37	876811		Screw   (Replaces: 489373)				$ 7.79
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
40	489340		Screw		Appelez-nous	-
41	2155301		Air Baffle		Appelez-nous	-
42	2155547		Clip, Heat Shield		Appelez-nous	-
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	488624		Screw		Appelez-nous	-
50	1105612		Guard, Fan				$ 42.61
51	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
52	WPW10339879		Strap   (Replaces: 2165001)				$ 8.30
53	WP489427		Screw   (Replaces: 489339)				$ 7.84
54	850145		Wire Connector		Appelez-nous	-
55	WP489478		Screw   (Replaces: 489242)				$ 8.18
59	2155658		Clip, Wire And Water Tube		Appelez-nous	-
61	876764		Valve, Access(3/16``)			Immediately	$ 95.92
61	978029		Valve Access (5/8``)				$ 93.85
61	978030		Valve, Access (3/4``)				$ 137.25
61	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
61	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
61	978026		Valve, Access (5/16``)			Immediately	$ 134.49
61	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 18.65
61	978028		Valve, Access (1/2)		Appelez-nous	-
