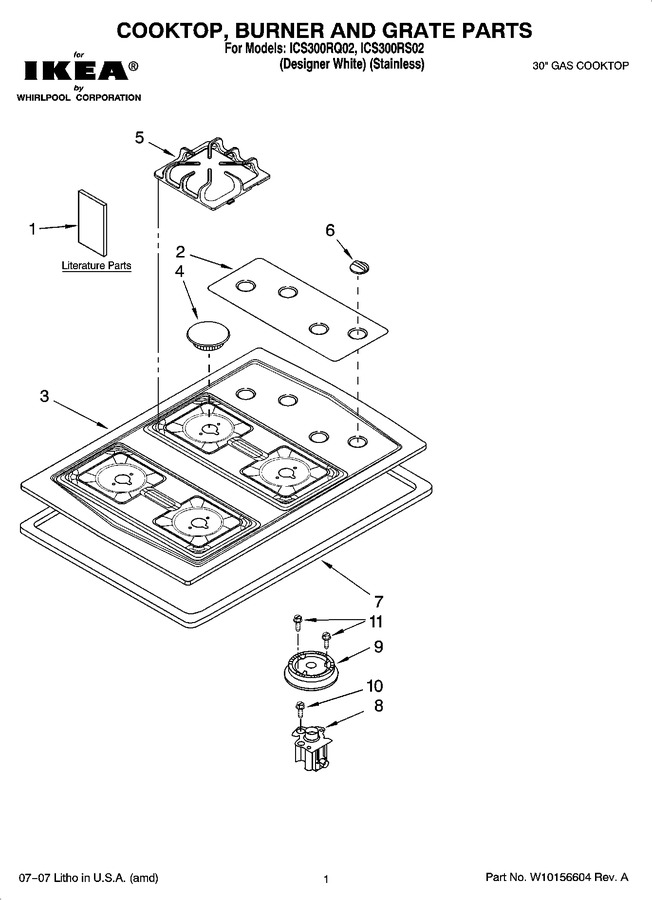

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3191638 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | 9759133 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | 9759440 | L.p. Conversion Instructions |
|
- | |||||
| 1 | 3192098 | Wiring Diagram |
|
- | |||||
| 1 | W10131955 | Installation Instructions |
|
- | |||||
| 1 | W10086230 | Owners Manual |
|
- | |||||
| 2 | 9759873 | Panel, Control (white) |
|
- | |||||
| 2 | 9759872 | Panel, Control (stainless) |
|
- | |||||
| 3 | W11230936 | Cooktop (stainless) (Replaces: 3191288) |
|
$ 396.01 | |||||
| 3 | WP3191243 | Cooktop (white) (Replaces: 3191243) |
|
$ 293.92 | |||||
| 4 | WP3191905 | Cap, Burner (12.5k (1)) (gray) (Replaces: 3191905) |
|
$ 81.88 | |||||
| 4 | WP3191903 | Cap, Burner (9.5k (2)) (gray) (Replaces: 3191903) |
|
$ 172.35 | |||||
| 4 | WP3191901 | Cap, Burner (9.5k) (2) (black) (Replaces: 3191901) |
|
$ 116.02 | |||||
| 4 | WP3191898 | Cap, Burner 6k (1) (black) (Replaces: 3191898) |
|
$ 63.90 | |||||
| 4 | 3191899 | Cap, Burner 6k (1) (gray) |
|
$ 31.21 | |||||
| 4 | WP3191904 | Cap, Burner (12.5k (1)) (black) (Replaces: 3191904) |
|
$ 165.74 | |||||
| 5 | 9761231 | Grate (4) (black) |
|
$ 78.62 | |||||
| 5 | 9761232 | Grate (4) (gray) |
|
- | |||||
| 6 | 9758788 | Knob, Control (4) (black) |
|
$ 18.93 | |||||
| 6 | 9758787 | Knob, Control (4) (white) |
|
- | |||||
| 7 | 9760045 | Seal, Foam |
|
$ 248.24 | |||||
| 8 | WPW10128448 | Holder, Orifice (includes 13 & 14) (auxi) (Replaces: 4456621) |
|
Immediately | $ 105.57 | ||||
| 8 | WPW10155784 | Holder, Orifice (includes 13 & 14) (semi Rapid) (Replaces: 4456620) |
|
Immediately | $ 103.27 | ||||
| 8 | WPW10155785 | Holder, Orifice (includes 13 & 14) (rapid) (Replaces: 4456619) |
|
$ 107.55 | |||||
| 9 | WP4455981 | Head, Burner (lf) (Replaces: 4455981) |
|
Immediately | $ 82.71 | ||||
| 9 | 9760037 | Head, Burner (lr, Rr) |
|
$ 95.05 | |||||
| 9 | 4455979 | Head, Burner (rf) |
|
$ 28.52 | |||||
| 10 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.80 | ||||
| 11 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 7.70 | ||||
| 4456627 | Harness, Wire (ignitor 28``) |
|
$ 198.59 | ||||||
| 4456626 | Harness, Wire Ignitor 15`` |
|
$ 69.66 |
