SELECT A DIAGRAM
New Model Search:

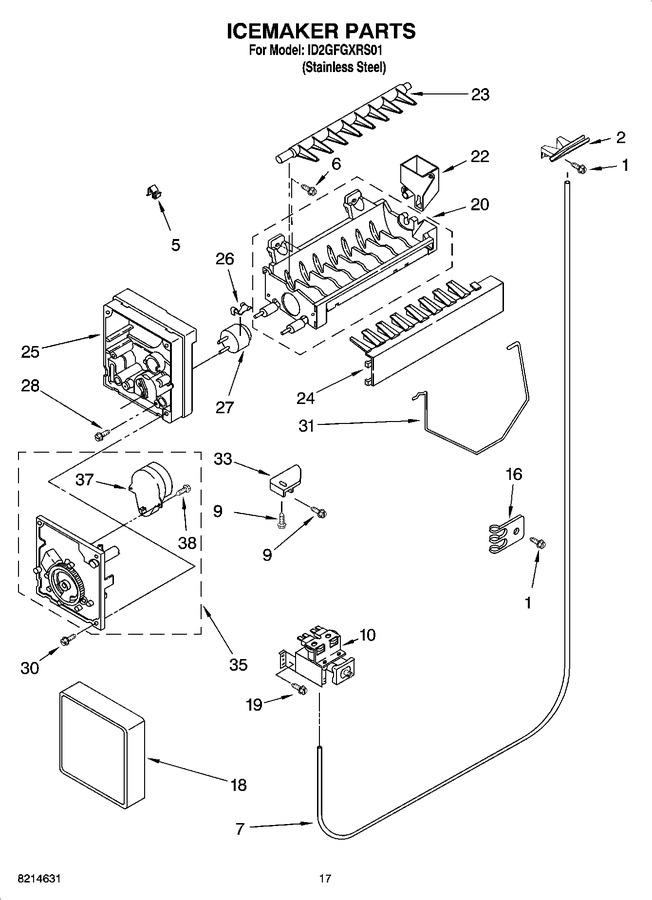

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.25 | |||||
| 2 | W11505385 | Chute, Water (Replaces: 2209774) |
|
$ 31.79 | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 7 | W10823511 | Tube Water (Replaces: 2181943) |
|
Immediately | $ 29.17 | ||||
| 9 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 10 | W10408179 | Valve, Solenoid (Replaces: 2188708) |
|
Immediately | $ 94.24 | ||||
| 16 | WP488366 | Clamp Tube (Replaces: 2208136) |
|
$ 10.73 | |||||
| 18 | WPW10289690 | Cover (Replaces: 2174155) |
|
$ 7.94 | |||||
| 19 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 20.00 | |||||
| 20 | WPW10190929 | Mold & Heater Assembly (also Order 542638 Silicone Grease) (Replaces: 628228) |
|
$ 210.17 | |||||
| 22 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 48.38 | |||||
| 23 | WP627843 | Ejector (Replaces: 627843) |
|
$ 79.00 | |||||
| 24 | WP2182124 | Ice Striper (Replaces: 2182124) |
|
$ 81.32 | |||||
| 25 | WP2195914 | Support (Replaces: 2194712) |
|
$ 98.82 | |||||
| 26 | WP2315522 | Retainer, Thermostat (Replaces: 627796) |
|
$ 10.44 | |||||
| 27 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 628397) |
|
$ 103.18 | |||||
| 28 | 8533917 | Screw |
|
$ 12.64 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 31 | W11807379 | Shut Off Arm (Replaces: 2209675) |
|
Immediately | $ 56.89 | ||||
| 33 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 30.40 | ||||
| 35 | 8201515 | Module Assembly (Replaces: 626678) |
|
Immediately | $ 143.80 | ||||
| 37 | W10190935 | Motor (Replaces: 626676) |
|
Immediately | $ 122.65 | ||||
| 38 | 489136 | Screw |
|
$ 9.72 | |||||
| 100 | 4317943 | Complete Icemaker Assembly |
|
Immediately | $ 165.11 |
