01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:

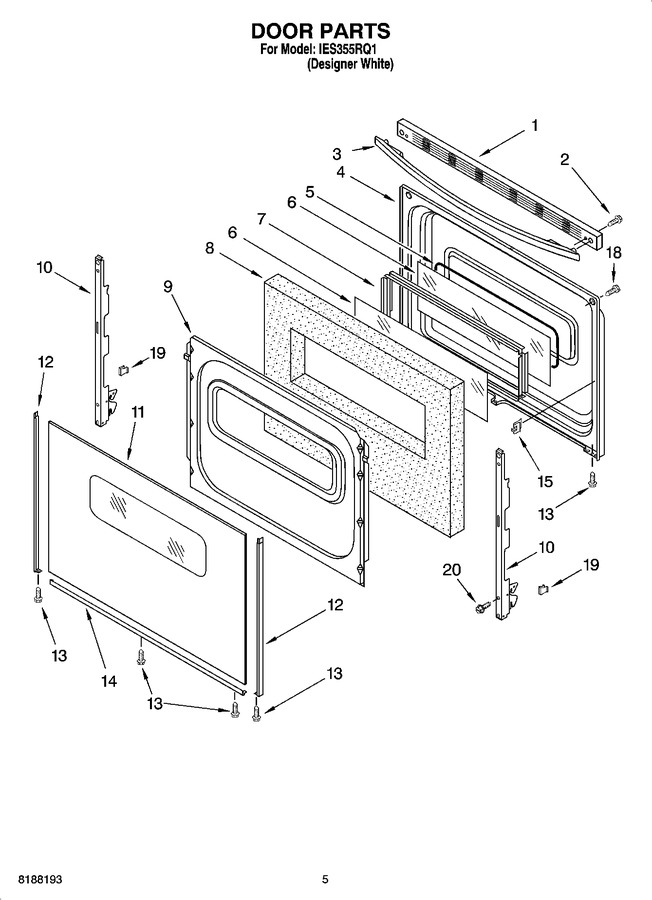

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8522433 | Trim, Door Top (white) |
|
- | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 9.93 | ||||
| 3 | WPW10202216 | Handle, Door (white) (Replaces: 8522444) |
|
$ 333.60 | |||||
| 4 | 3186296 | Liner, Door |
|
- | |||||
| 5 | 8522415 | Seal, Window |
|
$ 75.50 | |||||
| 6 | WP9758164 | Glass, Inner (2) (Replaces: 9758164) |
|
$ 143.94 | |||||
| 7 | 3186290 | Frame, Glass |
|
- | |||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 91.23 | ||||
| 9 | 9761499 | Retainer, Insul. (Replaces: 3186299) |
|
$ 292.80 | |||||
| 10 | WP8053807 | Hinge, Door (2) (Replaces: 8053807) |
|
$ 91.05 | |||||
| 11 | WP9762476 | Glass, Outer Door (white) (Replaces: 8053481) |
|
$ 299.39 | |||||
| 12 | WP8523172 | Trim, Side (white Left Hand) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 12 | WP8523166 | Trim, Side (white Right Hand) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 14 | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 55.23 | ||||
| 15 | 3196025 | Clip, Glass (4) |
|
$ 20.10 | |||||
| 18 | WP179051 | Screw (Replaces: 3196161) |
|
Immediately | $ 7.58 | ||||
| 19 | 3196925 | Clip, Door Stop |
|
$ 9.06 | |||||
| 20 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 |
