01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

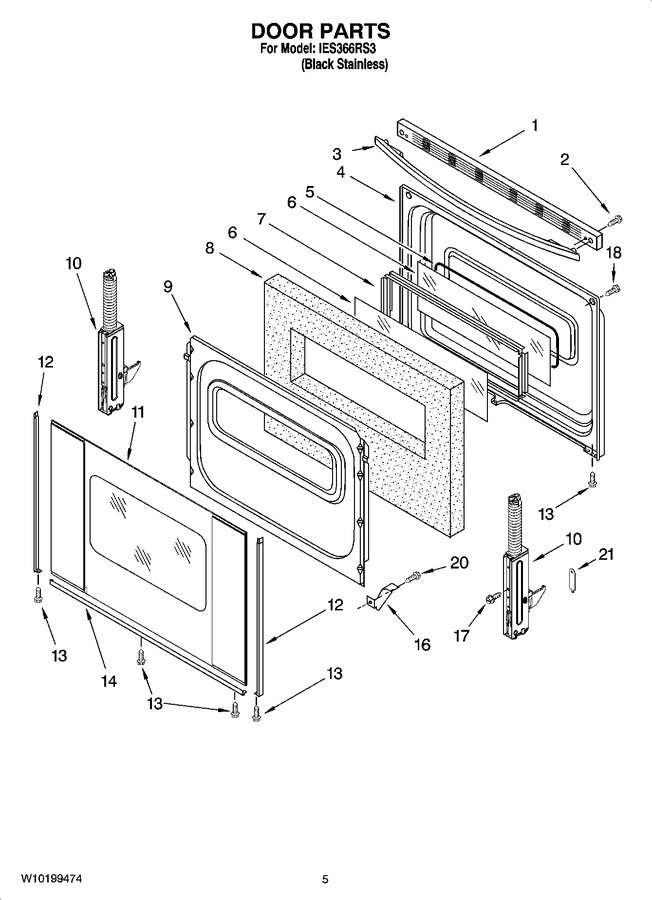

| 1 | W10016410 | Trim, Door Top |
|
- | |||||
| 2 | W10127970 | Mounting Bolt |
|
- | |||||
| 3 | 9758750 | Handle, Door |
|
- | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 335.60 | ||||
| 5 | 8522414 | Seal, Window |
|
$ 160.59 | |||||
| 6 | WP8053948 | Glass, Inner (2) (Replaces: 9758162) |
|
Immediately | $ 208.85 | ||||
| 7 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 81.08 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 91.23 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 9761357) |
|
$ 209.98 | |||||
| 10 | W10347464 | Hinge, Door (2) (Replaces: 9761496) |
|
Immediately | $ 120.58 | ||||
| 11 | W10153919 | Glass, Outer Door |
|
- | |||||
| 12 | W10761014 | Trim, Side (black Right Hand) (Replaces: 8523165) |
|
Immediately | $ 65.66 | ||||
| 12 | W10761018 | Trim, Side (black Left Hand) (Replaces: 8523171) |
|
Immediately | $ 49.32 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 14 | WP8523180 | Trim, Lower (Replaces: 8523180) |
|
$ 152.10 | |||||
| 16 | 3196794 | Bracket, Window |
|
$ 24.34 | |||||
| 17 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 18 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 20 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 21 | 9761517 | Clip, Door Mntg |
|
$ 43.30 |
