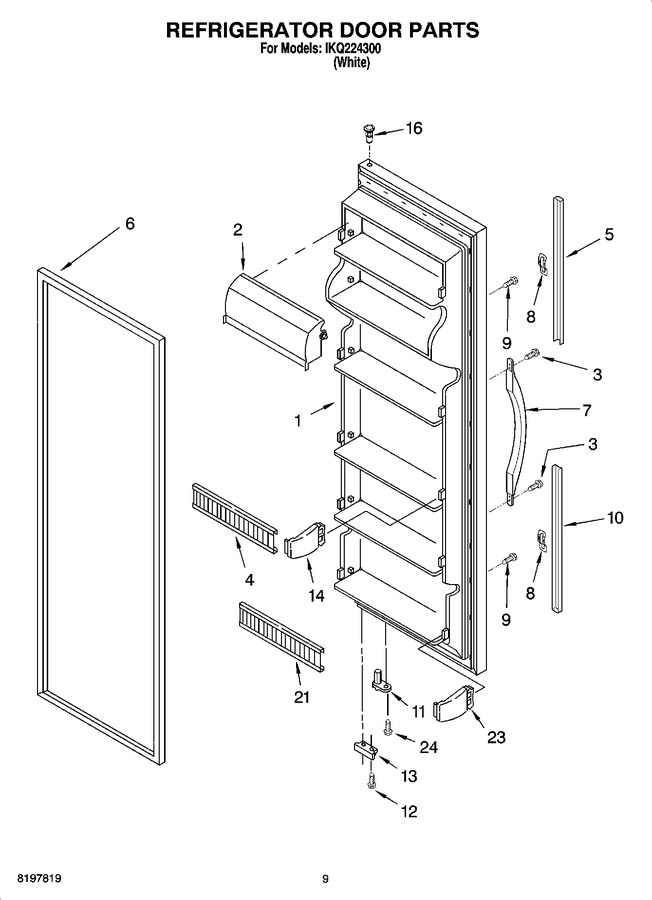

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206727W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 80.48
3	WP489491		Screw   (Replaces: 489491)				$ 6.57
4	2182190		Trim, Door (4)		Appelez-nous	-
5	2194971W		Extension, Handle Top (white)				$ 44.85
6	2159073		Door Gasket, Magnetic (repair)   (Replaces: 2196239)				$ 299.87
7	2186649W		Handle, Center (white)				$ 70.49
8	WP2195327		Clip   (Replaces: 2195327)				$ 6.99
9	WP3400852		Screw   (Replaces: 3400852)				$ 9.30
10	2194969W		Extension, Handle Bottom (white)				$ 5.51
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.48
12	WP489483		Screw   (Replaces: 489420)				$ 10.27
13	WP2206629B		Bracket, Door Stop   (Replaces: 2206629)				$ 38.51
14	WP2195916K		End Cap (6)   (Replaces: 2195916)			Immediately	$ 11.86
16	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 7.34
21	2195934		Trim, Door (1)				$ 46.59
23	WP2195915		Endcap (2)   (Replaces: 2195915)				$ 12.35
24	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
