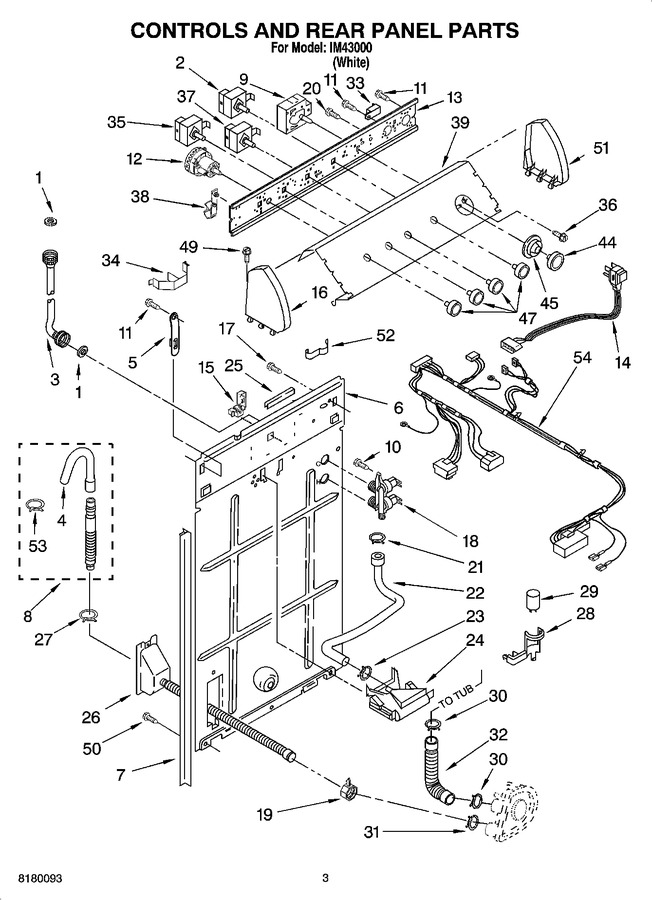

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) 1-1/16 X 5/8 (Replaces: 3976300) |
|
$ 7.34 | |||||
| 2 | WPW10168262 | Switch, Rotary (Replaces: 3949187) |
|
$ 122.63 | |||||
| 3 | WP89503 | Hose, Water Inlet (2) ((red Coupler)) (Replaces: 3949375) |
|
Immediately | $ 21.68 | ||||
| 3 | WP89503 | Hose, Water Inlet (2) ((blue Coupler)) (Replaces: 3949374) |
|
Immediately | $ 21.68 | ||||
| 4 | WP3357027 | Nozzle-drain Hose (Replaces: 3357027) |
|
$ 88.07 | |||||
| 5 | WP8568314 | Strap, Console (2) (Replaces: 8318255) |
|
$ 7.35 | |||||
| 6 | 3357978 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 24.81 | |||||
| 8 | 285666 | Hose, Drain (9 Ft.) (not Included) (Replaces: 661577) |
|
Immediately | $ 98.08 | ||||
| 8 | 285664 | Hose, Drain (4 Ft.) (Replaces: 3951609) |
|
Immediately | $ 37.88 | ||||
| 8 | 285702 | Extension, Drain Hose (21 Inches) (not Included) (Replaces: 3357090) |
|
Immediately | $ 57.55 | ||||
| 9 | WP8541942 | Timer, Control (60 Hz.) (motor Not A Service Part) (Replaces: 8541942) |
|
$ 332.58 | |||||
| 10 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 11 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 12 | W10335056 | Switch, Water Level (Replaces: 3366846) |
|
Immediately | $ 89.80 | ||||
| 13 | WP3948608 | Bracket, Control (Replaces: 3948608) |
|
$ 109.80 | |||||
| 14 | 661661 | Cord, Power (includes Item 15) |
|
$ 25.46 | |||||
| 15 | 3952821 | Strain Relief, Power Cord |
|
- | |||||
| 16 | 8271365 | Cap, End (l.h.) |
|
- | |||||
| 17 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 6.57 | ||||
| 18 | 285805 | Valve, Water Mixing (Replaces: 3955673) |
|
Immediately | $ 49.57 | ||||
| 19 | 3976395 | Clamp, Hose |
|
$ 11.96 | |||||
| 20 | 3400073 | Screw |
|
- | |||||
| 21 | WP596669 | Clamp, Hose (Replaces: 370451) |
|
Immediately | $ 7.94 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 3357328) |
|
Immediately | $ 22.30 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 7.94 | ||||
| 24 | WP3347034 | Break, Vacuum (Replaces: 3347034) |
|
Immediately | $ 85.48 | ||||
| 25 | 303294 | Edge Protector |
|
- | |||||
| 26 | WPW10358149 | Hose-corrugated Assembly (Replaces: 8317940) |
|
Immediately | $ 43.34 | ||||
| 27 | WP356138 | Clamp, Hose (Replaces: 3366912) |
|
Immediately | $ 7.67 | ||||
| 28 | 8318201 | Clip, Capacitor |
|
- | |||||
| 29 | WP8572717 | Capacitor, Motor Start (Replaces: 661606) |
|
Immediately | $ 87.84 | ||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 7.72 | ||||
| 31 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 7.93 | ||||
| 32 | 285871 | Hose, Pump To Tub (Replaces: 3951449) |
|
Immediately | $ 26.09 | ||||
| 33 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 120.65 | |||||
| 34 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 35 | 661614 | Switch, Water Temperature |
|
$ 56.07 | |||||
| 36 | WP3400818 | Screw, Timer Mounting (Replaces: 3400818) |
|
$ 7.93 | |||||
| 37 | WPW10168257 | Switch-rotary (Replaces: 3949180) |
|
$ 126.00 | |||||
| 38 | 8317975 | Retainer, Harness |
|
$ 5.86 | |||||
| 39 | 3954236 | Panel, Console |
|
- | |||||
| 44 | W10807860 | Knob, Timer (Replaces: 8271345) |
|
Immediately | $ 47.22 | ||||
| 45 | WP3957849 | Dial, Timer (Replaces: 8271351) |
|
$ 43.26 | |||||
| 47 | WP3957799 | Knob, Control (Replaces: 8271339) |
|
$ 49.55 | |||||
| 49 | WP388326 | Screw, 8-18 X 1.25 (panel To Top) (Replaces: 388326) |
|
$ 8.36 | |||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.43 | |||||
| 51 | 8271359 | Cap, End (r.h.) |
|
- | |||||
| 52 | 8528351 | Clip, Harness (Replaces: 3347812) |
|
- | |||||
| 53 | WP3357331 | Clamp, Drain Hose (Replaces: 3366913) |
|
$ 7.37 | |||||
| 54 | 3956653 | Wiring, Harness (for Detail See Page 9 & 10) |
|
- |
