SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts, Optional Parts

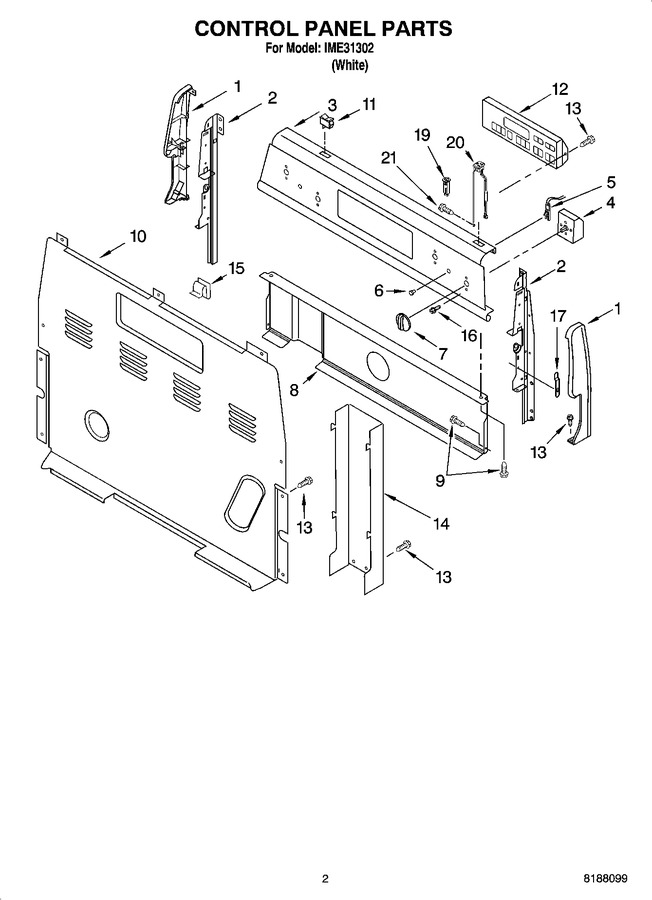

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186190		Endcap (white Left Hand)		Appelez-nous	-
1	3186191		Endcap (white Right Hand)		Appelez-nous	-
2	8523408		Support, Endcap (left Hand)		Appelez-nous	-
2	8523409		Support, Endcap (right Hand)		Appelez-nous	-
3	9758901		Panel, Backguard (white)				$ 71.99
4	WP3148952		Switch, Infinite (right Front)   (Replaces: 3148952)			Immediately	$ 62.56
4	WP3400882		Screw (8)   (Replaces: 3400882)			Immediately	$ 6.80
4	WP3149400		Switch, Infinite (right Rear)   (Replaces: 3148954)			Immediately	$ 81.46
5	WP8523265		Light, Indicator   (Replaces: 8523265)			Immediately	$ 91.76
6	WP3196068		Lens, Light   (Replaces: 3196068)			Immediately	$ 5.63
7	WP8522565		Knob, Infinite (4) (white)   (Replaces: 8522565)			Immediately	$ 18.81
8	8053912		Shield, Heat				$ 34.55
9	W10276642		Screw   (Replaces: 4449746)				$ 5.77
10	WP8272473		Cover, Upper   (Replaces: 8272473)				$ 197.14
11	3149360		Switch, Rocker (white)				$ 89.01
12	6610461		Control, Range (white)				$ 320.43
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
14	WPW10326122		Cover, Box   (Replaces: 9758283)				$ 125.64
15	WP8273564		Clip   (Replaces: 8273564)				$ 11.39
16	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
17	3196200		Clip, Spring (2)				$ 9.41
19	WP9757601		Breaker, 15amp   (Replaces: 9757601)			Immediately	$ 59.00
20	W10849725		Outlet, Untimed   (Replaces: 9758885)			Immediately	$ 100.00
21	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16

    View Diagram in Separate Window       Print Part List
