SELECT A DIAGRAM

01 - Cabinet Parts

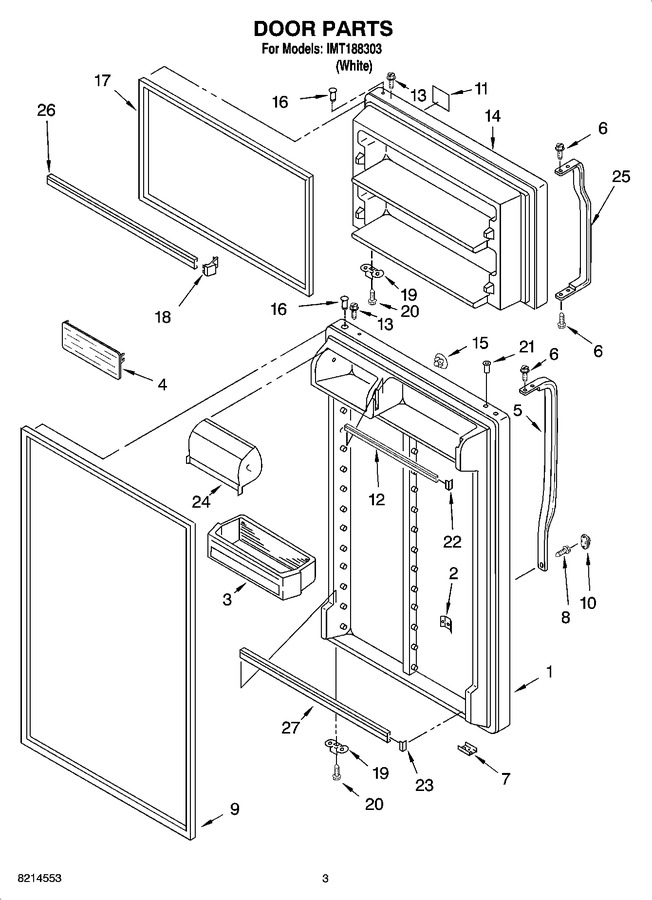

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183898		Refrigerator Door (includes Illus. 2,7,9 & 16)		Appelez-nous	-
2	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.09
3	WP2204810		Bin, Door   (Replaces: 2204810)			Immediately	$ 75.21
4	WP2188234		Door, Flip Up   (Replaces: 2188234)			Immediately	$ 54.28
5	WP2202807W		Handle, Refrigerator   (Replaces: 2202807W)				$ 146.68
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
7	2183198		Tap Plate		Appelez-nous	-
8	WP8281146		Screw   (Replaces: 8281146)				$ 7.36
9	2159057		Door Gasket, Magnetic   (Replaces: 2202874)			Immediately	$ 168.76
10	WP2202819W		Cover, Screw   (Replaces: 2202819W)			Immediately	$ 7.33
11	2225801		Nameplate		Appelez-nous	-
12	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 111.89
13	WP8281206		Screw   (Replaces: 8281206)				$ 7.53
14	2182487		Freezer Door (includes Illus. 7, 16 & 17)		Appelez-nous	-
15	WP2189000		Hole Plug, Handle   (Replaces: 2189000)			Immediately	$ 6.99
16	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
17	2159327		Door Gasket, Magnetic   (Replaces: 2214966)			Immediately	$ 148.12
18	WP2195916K		Endcap, Trim   (Replaces: 2195916)			Immediately	$ 11.86
19	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 12.03
20	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.42
21	WP2212648		Hole Plug   (Replaces: 2212648)			Immediately	$ 7.37
22	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.23
23	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 11.51
24	WP2218113		Compartment Door   (Replaces: 2218113)			Immediately	$ 45.30
25	WP2202806W		Handle, Freezer   (Replaces: 2202806W)				$ 139.86
26	2195946		Trim-door (2)				$ 46.58
27	WPW10421484		Trim, Door   (Replaces: 2195949)				$ 122.63

    View Diagram in Separate Window       Print Part List
