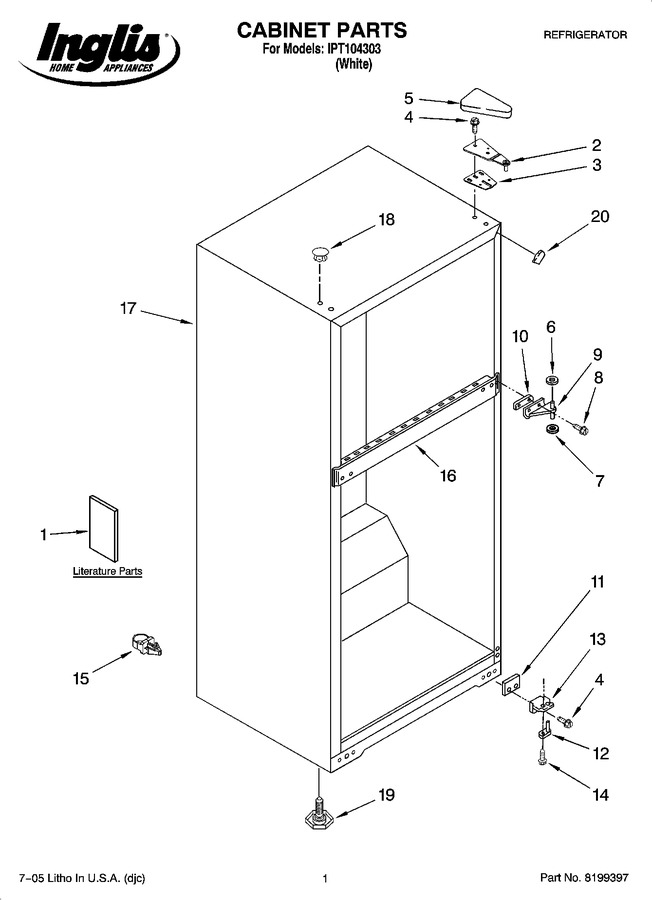

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2264458 | Service & Wiring Sheet |
|
- | |||||
| 1 | 677969 | Do-it-yourself Manual, Ref./fzr. |
|
$ 30.30 | |||||
| 1 | 2263467 | Energy Guide |
|
- | |||||
| 1 | 2263466 | Use & Care Guide |
|
- | |||||
| 2 | 2211109 | Hinge, Top |
|
- | |||||
| 3 | W11169703 | Shim-hinge-top (Replaces: 2221885) |
|
$ 14.21 | |||||
| 4 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 5 | 842010 | Cover, Hinge |
|
- | |||||
| 6 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.67 | ||||
| 7 | WP487802 | Washer (7/64 Nylon) (Replaces: 487802) |
|
Immediately | $ 7.12 | ||||
| 8 | 3400112 | Screw |
|
$ 66.11 | |||||
| 9 | 2211114 | Hinge, Center |
|
- | |||||
| 10 | 2166043 | Shim, Hinge Center |
|
$ 62.78 | |||||
| 11 | 2211299 | Shim, Hinge Bottom |
|
$ 11.56 | |||||
| 12 | 2211158 | Hinge-pin, Bottom |
|
$ 31.73 | |||||
| 13 | 2211159 | Hinge-butt, Bottom |
|
- | |||||
| 14 | WP3428970 | Screw (Replaces: 3428970) |
|
$ 10.38 | |||||
| 15 | 2219077 | Clip, Harness |
|
$ 57.82 | |||||
| 18 | WP2151652 | Hole Plug (4) (Replaces: 2201012) |
|
$ 20.58 | |||||
| 19 | 946209 | Leg, Leveler |
|
$ 28.65 | |||||
| 20 | 2191595 | Filler, Corner |
|
$ 5.89 |
