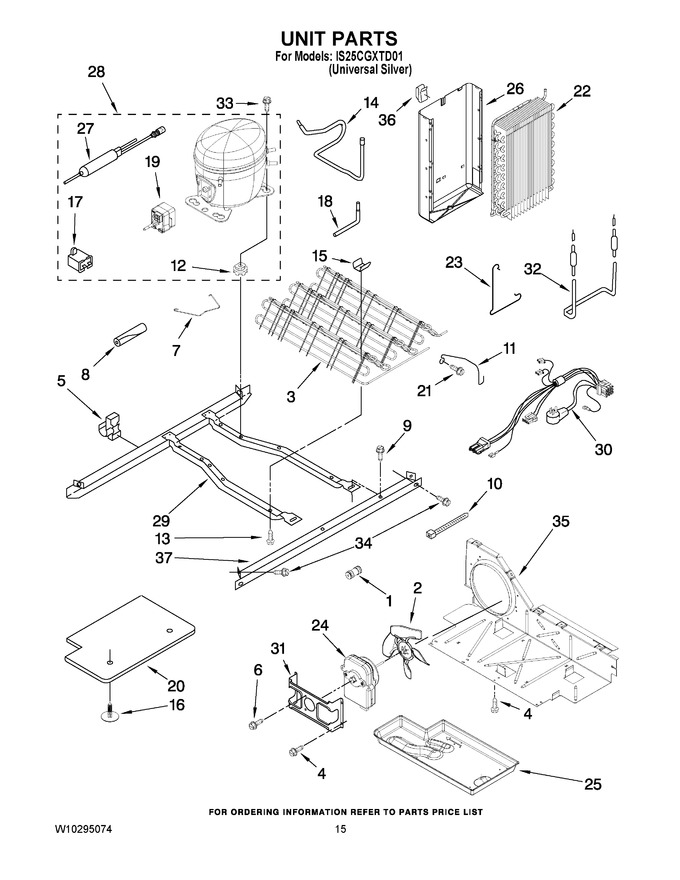

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4373559 | Union (Replaces: 2209709) |
|
$ 73.10 | |||||
| 2 | W11458267 | Fan Blade (Replaces: 2225834) |
|
Immediately | $ 22.67 | ||||
| 3 | 2324712 | Condenser Assembly (Replaces: W10222348) |
|
$ 291.11 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 5 | 2208280 | Clip, Wire |
|
- | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 10.09 | |||||
| 7 | 2223313 | Clip, Retaining |
|
- | |||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 19.19 | ||||
| 9 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.06 | |||||
| 10 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 7.47 | |||||
| 11 | 2186495 | Guard, Fan |
|
- | |||||
| 12 | WP4387558 | Grommet (service) (Replaces: 4387558) |
|
$ 6.57 | |||||
| 12 | 876811 | Grommet (production) (Replaces: 1100826) |
|
$ 7.01 | |||||
| 13 | W11544659 | Overload (Replaces: 8281232) |
|
$ 12.92 | |||||
| 14 | 2205765 | Tube Suction |
|
$ 36.04 | |||||
| 15 | W10683556 | Clip, Condenser (2) (Replaces: 2311725) |
|
$ 17.44 | |||||
| 16 | 489396 | Clip |
|
$ 10.13 | |||||
| 17 | WPW10662129 | Capacitor (service Only) (Replaces: 2264017) |
|
Immediately | $ 52.97 | ||||
| 18 | 2325479 | Process Tube |
|
- | |||||
| 19 | WP2304885 | Start Device, (combination Relay & Overload) (production) (Replaces: 2320153) |
|
$ 169.60 | |||||
| 19 | WP2304885 | Start Device, (combination Relay & Overload) (service) (Replaces: 2304885) |
|
$ 169.60 | |||||
| 20 | 2304899 | Unit Cover, Bottom |
|
- | |||||
| 21 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 22 | WP2188823 | Evaporator (Replaces: 2188823) |
|
Immediately | $ 343.34 | ||||
| 23 | 2161324 | Clamp |
|
- | |||||
| 24 | W10124096 | Fan, Motor (Replaces: W10130108) |
|
Immediately | $ 146.83 | ||||
| 25 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 142.34 | ||||
| 26 | W10194475 | Heat Shield |
|
- | |||||
| 27 | WPW10143759 | Drier (service) (Replaces: 2317845) |
|
Immediately | $ 27.70 | ||||
| 27 | WPW10143759 | Drier (production) (Replaces: W10177049) |
|
Immediately | $ 27.70 | ||||
| 28 | W10139460 | Compressor (includes Items 12, 17, 17 & 27) (also Order 876765 Tube Kit) (Replaces: W10120460) |
|
$ 464.26 | |||||
| 29 | W10196321 | Unit Mounting Frame |
|
- | |||||
| 30 | 2187510 | Unit, Harness (includes Power Cord) |
|
- | |||||
| 31 | WP2181929 | Fan, Motor Bracket (Replaces: 2181929) |
|
$ 11.64 | |||||
| 32 | WP2323198 | Heater, Defrost (Replaces: 2188175) |
|
Immediately | $ 81.63 | ||||
| 33 | 876811 | Screw (Replaces: 489373) |
|
$ 7.01 | |||||
| 34 | 489340 | Screw (5) |
|
- | |||||
| 35 | W10163483 | Air Baffle |
|
- | |||||
| 36 | 2155547 | Clip, Heat Shield |
|
- | |||||
| 37 | WPW10196323 | Unit Mounting Rail (Replaces: W10196323) |
|
$ 112.40 | |||||
| NI | 978028 | Valve, Access (1/2) |
|
- | |||||
| NI | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| NI | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 86.33 | ||||
| NI | N/P | Refrigerant Charge (5.0 Oz. (r-134a)) |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 |
