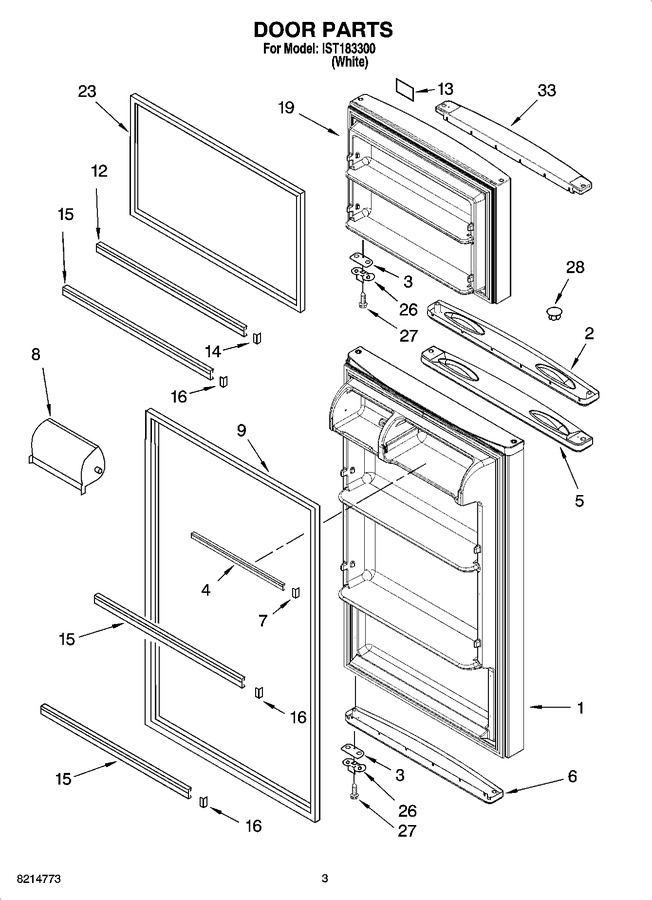

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2265677W | Refrigerator Door (includes) Items 5,6 & 9) |
|
- | |||||
| 2 | 2265645W | Handle, Freezer (Replaces: 2265646W) |
|
$ 219.98 | |||||
| 3 | WP2258681W | Shim, Door Stop (Replaces: 2258681W) |
|
Immediately | $ 7.55 | ||||
| 4 | W11129820 | Trim, Door (Replaces: 2264785) |
|
Immediately | $ 127.34 | ||||
| 5 | 2265645W | Handle, Refrigerator |
|
$ 219.98 | |||||
| 6 | 2265647W | Endcap, Bottom |
|
$ 63.82 | |||||
| 7 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 8.03 | ||||
| 8 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 73.21 | ||||
| 9 | WP2319264W | Door Gasket, Magnetic (Replaces: 2264727) |
|
Immediately | $ 329.08 | ||||
| 12 | WP2266727 | Trim, Door (narrow) (Replaces: 2263260) |
|
Immediately | $ 120.57 | ||||
| 13 | 2263431 | Nameplate |
|
$ 78.08 | |||||
| 14 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 15 | WP2266738 | Trim, Door (Replaces: 2263259) |
|
$ 111.69 | |||||
| 16 | WP2195916K | Endcap, Trim (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 19 | L2265678W | Freezer Door (includes Illus. 2,23 & 33) (Replaces: 2265678W) |
|
$ 590.40 | |||||
| 23 | WP2319263W | Door Gasket, Magnetic (Replaces: 2264726) |
|
Immediately | $ 265.20 | ||||
| 26 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 27 | W10276642 | Screw (Replaces: 8533904) |
|
$ 6.41 | |||||
| 28 | WP2212648 | Hole Plug (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 33 | 2265644W | Endcap, Top |
|
$ 148.05 |
