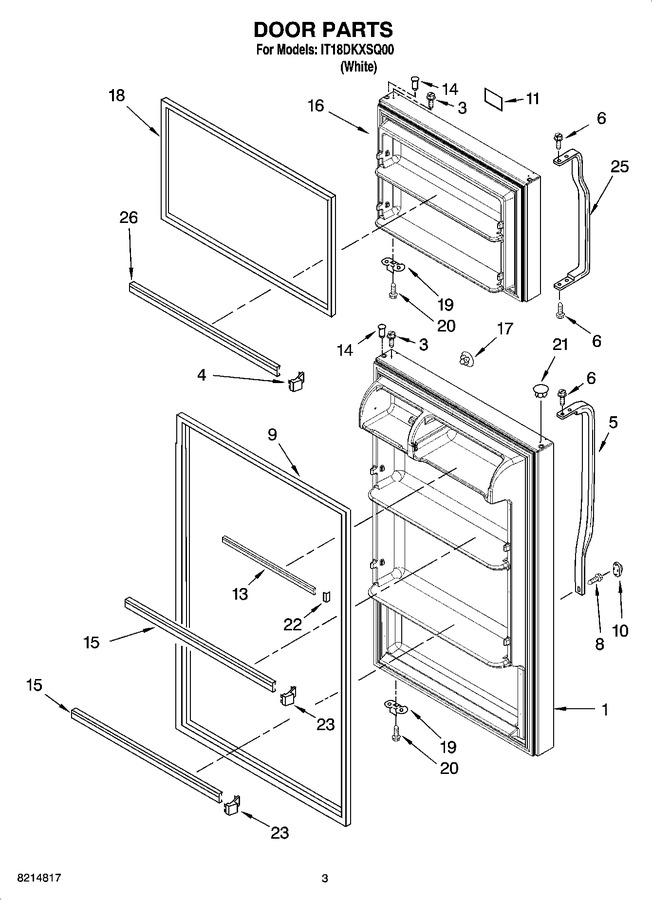

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2263256W		Refrigerator Door (includes Illus. 9,14)		Appelez-nous	-
3	WP8281206		Screw   (Replaces: 8281206)				$ 7.53
4	WP2156003		Trim, Endcap   (Replaces: 2156003)			Immediately	$ 11.93
5	WP2221946W		Handle, Refrigerator   (Replaces: 2221946W)			Immediately	$ 117.10
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
8	WP8281146		Screw   (Replaces: 8281146)				$ 7.36
9	WP2319264T		Door Gasket, Magnetic   (Replaces: 2263258)			Immediately	$ 193.96
10	WP2202819W		Screw Cover   (Replaces: 2202819W)			Immediately	$ 7.33
11	2314160W		Nameplate		Appelez-nous	-
13	W11129820		Trim, Door Shelf (upper)   (Replaces: 2264785)			Immediately	$ 114.61
14	WP2183003		Thimble   (Replaces: 2262054)				$ 7.33
15	WP2266738		Trim, Door   (Replaces: 2263259)				$ 100.52
16	2263254W		Freezer Door (includes Illus. 14,18)		Appelez-nous	-
17	WP2189000		Hole Plug, Handle   (Replaces: 2189000)			Immediately	$ 6.99
18	WP2319263T		Door Gasket, Magnetic   (Replaces: 2263257)			Immediately	$ 194.27
19	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
20	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.42
21	WP2212648		Hole Plug   (Replaces: 2212648)			Immediately	$ 7.37
22	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.23
23	WP2195916K		Trim, End Cap   (Replaces: 2195916)			Immediately	$ 11.86
25	WP2202098		Handle, Freezer   (Replaces: 2202098)				$ 141.14
26	WP2266727		Trim, Door   (Replaces: 2263260)			Immediately	$ 108.51
