Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12658501W Door, Refrigerator (white) Appelez-nous -
2 60001022 Screw-handle (2)   (Replaces: 12990508) Special Order $ 59.77

3 WP67003637 Door, Dairy   (Replaces: 12804701SP) In-Stock Immediately $ 74.40

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 79.21

5 67001141 Bucket, Door (small (2))   (Replaces: 12557202) In-Stock Immediately $ 71.02

5 WP67001021 Bucket, Door (medium (2))   (Replaces: 12557204V) Special Order $ 76.46

6 WP67001130 Plug-handle Hole (white)   (Replaces: 12246601) In-Stock Immediately $ 7.39

8 WPW10443309 Gasket, Door (white)   (Replaces: W10164030) In-Stock Immediately $ 328.72

9 12753101W Handle, Door (white) Appelez-nous -
10 WP98165 Screw   (Replaces: 12990504) Special Order $ 7.71

11 12968202W Stop, Door (white)   (Replaces: 10447111) Special Order $ 62.36

12 2263431 Nameplate Special Order $ 70.27

13 12690501 Retainer, Ref Door Special Order $ 41.75

14 WP67004977 Bushing (4) (white)   (Replaces: 10961006W) Special Order $ 7.38

15 12641702W Trim, Handle-top (white) Appelez-nous -
16 12248201 Screw Special Order $ 5.48

17 12660304W Trim-handle, Bottom (white) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

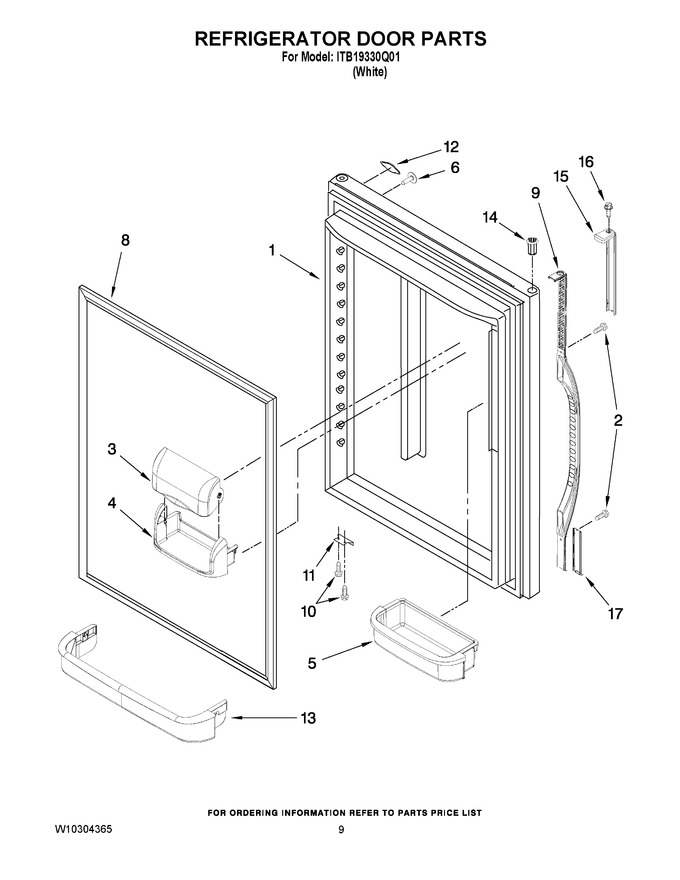

Diagram for ITB19330Q01
