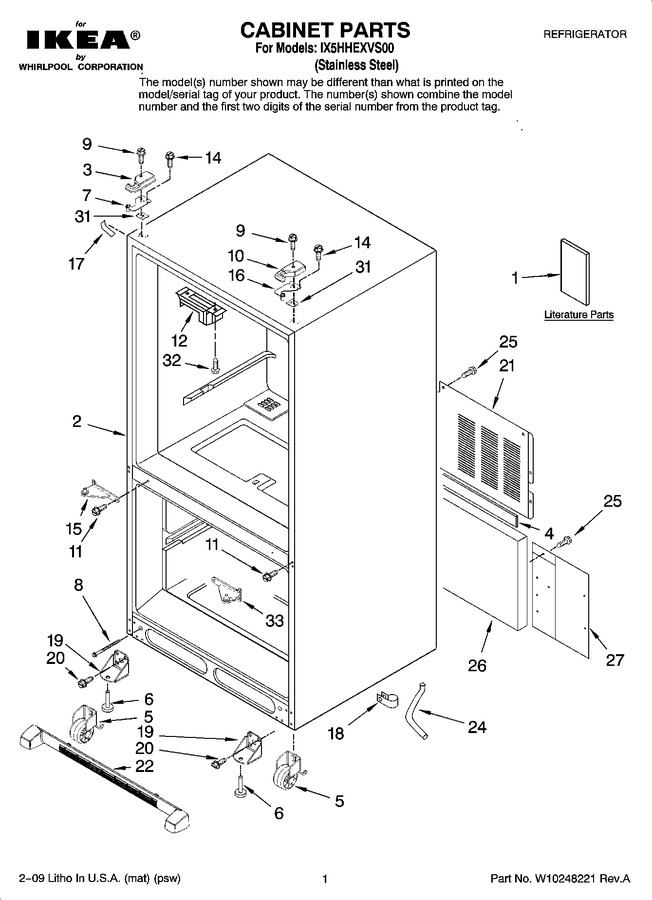

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10215626		Use & Care Guide		Appelez-nous	-
1	W10214825		Energy Guide		Appelez-nous	-
1	12827967		Tech Sheet		Appelez-nous	-
3	12684201B		Cover, Left Hinge (black)		Appelez-nous	-
4	B5759649		Gasket		Appelez-nous	-
5	12580304		Roller Assy. (2)				$ 5.84
6	W11177593		Foot Brake   (Replaces: 67003868)				$ 10.96
7	WP12566607ED		Hinge, Left Top   (Replaces: 12566607ED)				$ 81.98
8	71003131		Bolt, Adjusting (front Roller)   (Replaces: 67006611)			Immediately	$ 6.37
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 6.80
10	12684202B		Cover, Right Hinge (black)		Appelez-nous	-
11	WP489349		Screw   (Replaces: 67005822)			Immediately	$ 7.59
12	WP67003405		Block, Pivot   (Replaces: 67003405)			Immediately	$ 7.39
14	WP489349		Screw (3)   (Replaces: 67006303)			Immediately	$ 7.59
15	W10918164		Hinge, Center (lt) (black)   (Replaces: 13000007ED)				$ 82.38
16	WP12566606ED		Hinge, Right Top   (Replaces: 12566606ED)			Immediately	$ 42.42
17	67003485		Cover, Corner (black)			Immediately	$ 19.93
18	W10157973		Clip, Drain				$ 7.80
19	12906303WD		Bracket, Foot (2)				$ 79.72
20	67006564		Screw (4)			Immediately	$ 7.34
21	67006102		Cover, Unit		Appelez-nous	-
22	WPW10534153		Grille, Toe (black)   (Replaces: 67006375)				$ 139.11
24	W10164397		Tube, Drain				$ 13.98
25	67006425		Screw			Immediately	$ 6.57
26	67003796		Fiber, Acoustic				$ 19.27
27	12479803		Cover, Water Valve		Appelez-nous	-
31	12579702		Shim, Top Hinge		Appelez-nous	-
32	WP7101P126-60		Screw, Block   (Replaces: 67006669)			Immediately	$ 7.52
33	W10918164		Hinge, Center (rt) (black)   (Replaces: 13000008ED)				$ 82.38
